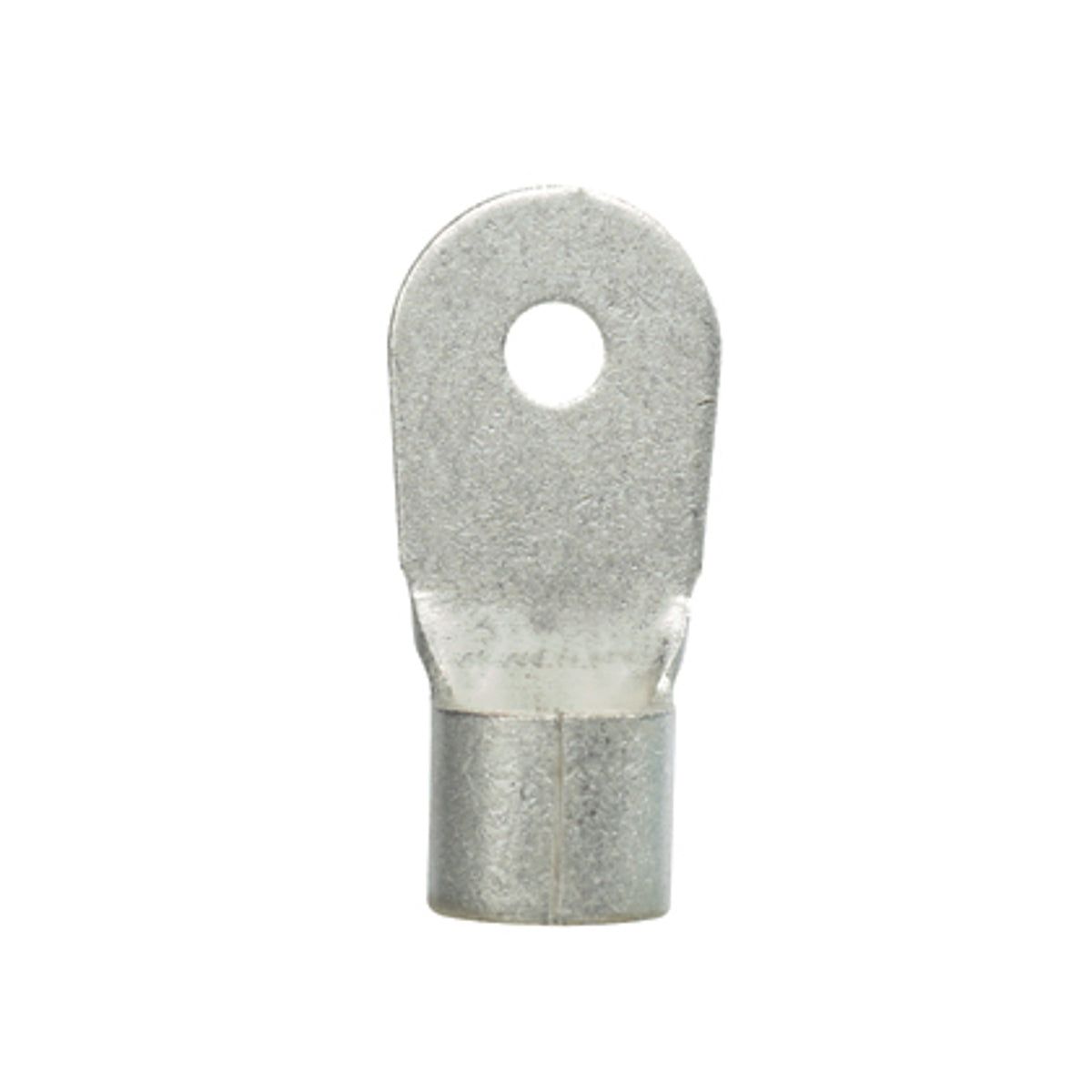

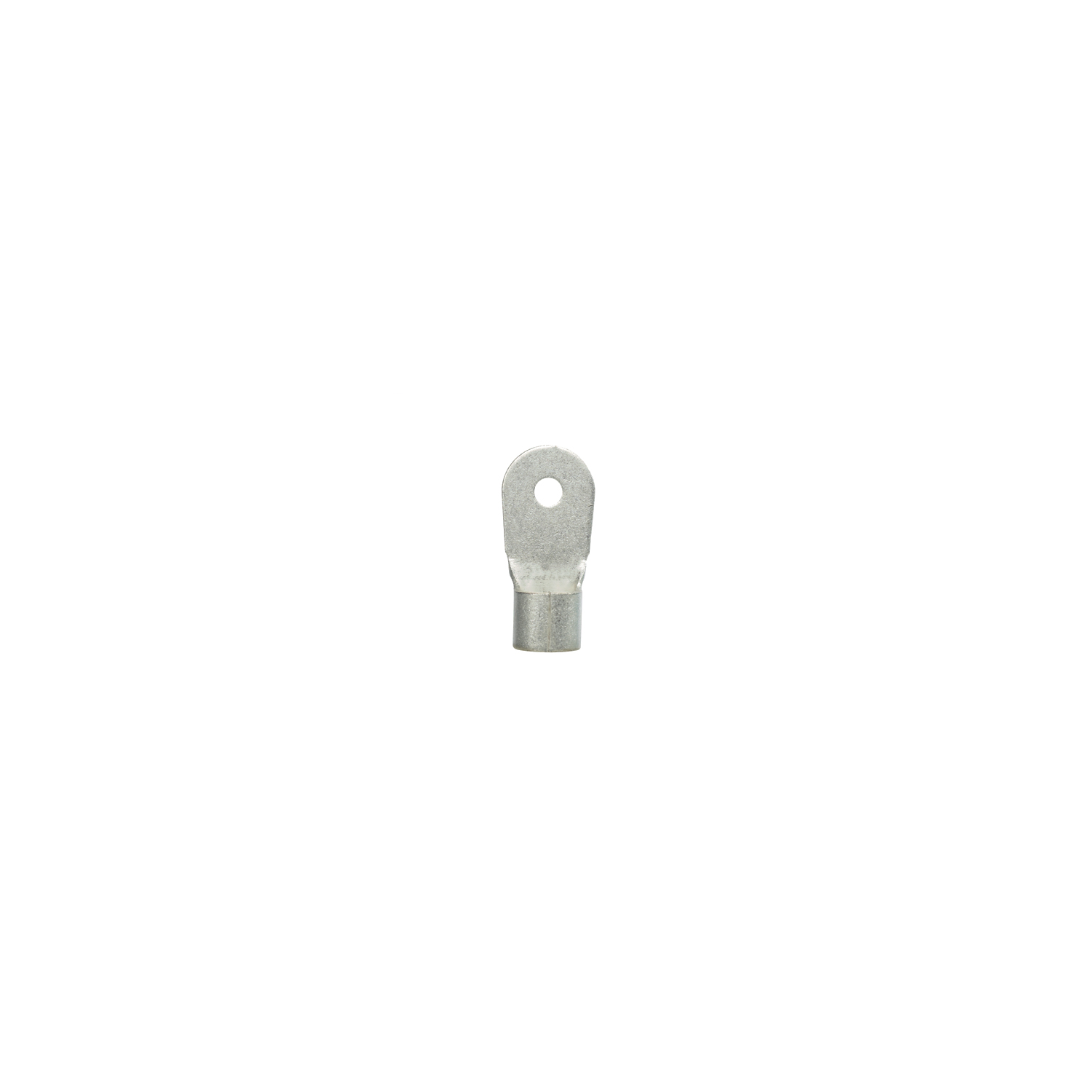

Panduit P8-14RHT6-Q Ring HiTemp Non-Insulated 8 AWG 1/4 in Stud Pack of 25

Product Description

Panduit P8-14RHT6-Q is a high temperature, non-insulated ring terminal for 8 AWG stranded conductors that fits a 1/4 in (6.35 mm) stud. It features a nickel-plated copper contact with a brazed-seam barrel and internal serration for crimp termination, an overall length of 1.14 in, and is rated to 650 degrees Fahrenheit (343 degrees Celsius) and 2000 V. Typical uses include high-temperature electrical connections and high-vibration assemblies.

• Rated to 650°F (343°C) and 2000 V for high-temperature applications
• Nickel-plated copper contact with brazed-seam barrel and internal serration for crimp termination
• Designed for 8 AWG stranded wire and fits a 1/4 in (6.35 mm) stud; packaged in packs of 25

Product Highlights

High-temperature nickel-plated copper ring terminal; brazed seam; 1/4 in stud; pack of 25

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P8-14RHT6-Q
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Panduit
• MPN: P8-14RHT6-Q
• Part Type: Ring terminal
• Series: P-RHT
• Wire Size: 8 AWG
• Conductor Type: Stranded
• Stud Size: 1/4 in (6.35 mm)
• Insulation: Non-insulated
• Material: Copper (nickel-plated contact)
• Contact Material: Copper
• Finish: Nickel plated
• Contact Finish: Nickel
• Temperature Rating: 650 degrees Fahrenheit (343 degrees Celsius)
• Voltage Rating: 2000 V
• Barrel Size: 0.19 in ID x 0.27 in OD
• Barrel Type: Brazed seam
• Overall Length: 1.14 in (28.96 mm)
• Tongue Size: 0.47 in W x 0.04 in THK (11.94 mm x 1.02 mm)
• Tongue Type: Ring
• Termination Style: Crimp
• Mounting Type: Free hanging (in-line)
• Packaging: Pack of 25
• Country of Origin: Mexico
• Standards/Approvals: CSA C22.2 No. 65; UL 486A; UL 486B; RoHS Compliant; ARRA Compliant; Buy American Act Compliant
• UPC: 074983189670
• GTIN: 00074983189670
• UNSPSC Code: 39121400
