Panduit P8-14R-Q Ring Terminal, Bare, 8 AWG, 1/4 Stud, PK25

Product Description

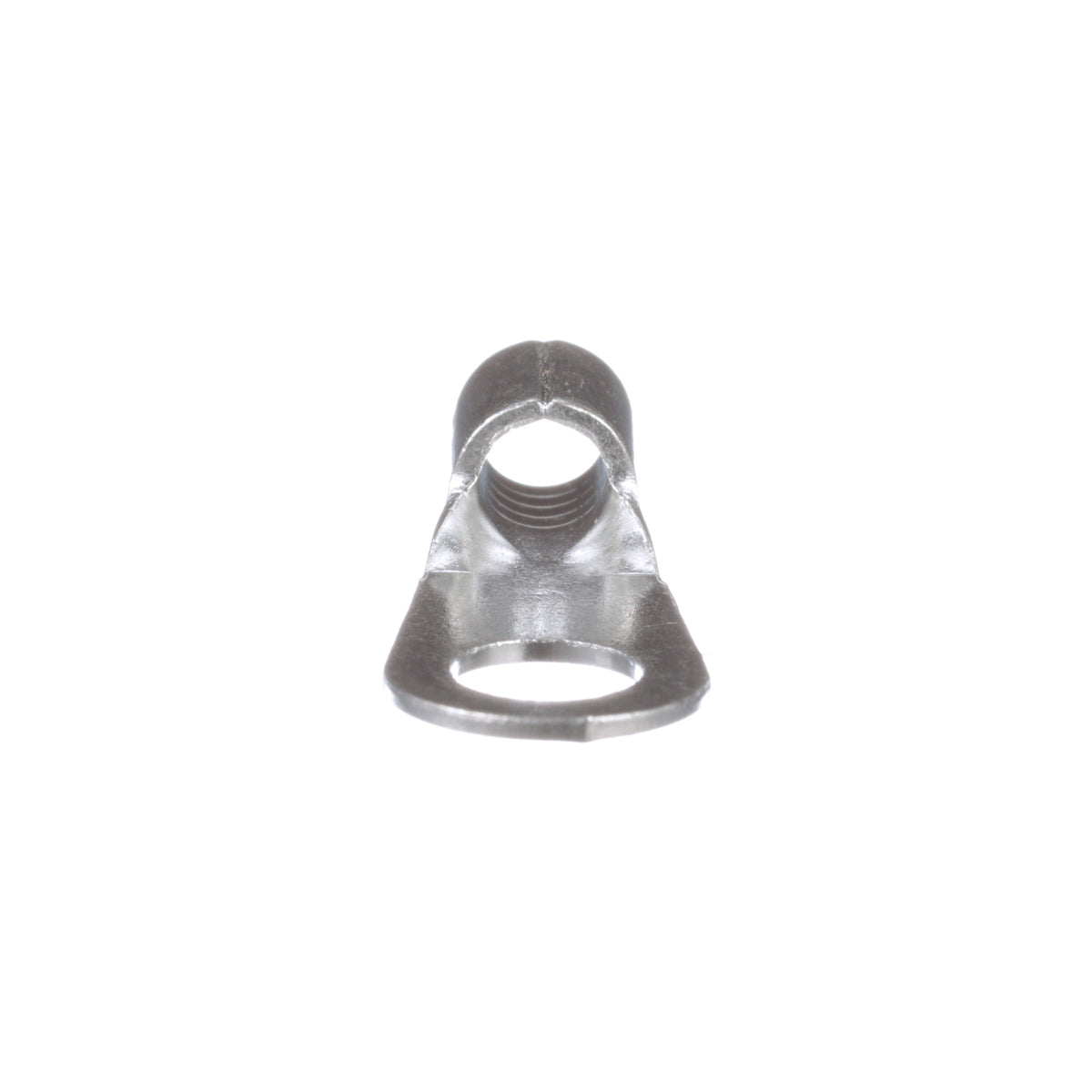

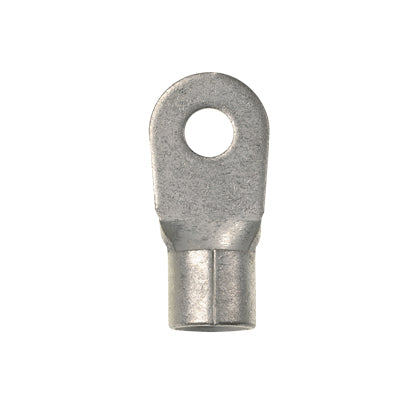

The P8-14R-Q Pan-Term terminal, manufactured by Panduit, is a non-insulated ring terminal designed for reliable electrical connections. This terminal accommodates an eight American Wire Gauge (AWG) conductor and fits a quarter-inch stud size. The terminal features an internal barrel with serrations to ensure a solid wire connection, providing maximum tensile strength.

• Brazed seam construction prevents the terminal barrel from splitting during the crimping process.
• Made from copper and tin-plated for enhanced conductivity and durability.
• Meets various industry standards for voltage and temperature ratings.

Product Highlights

The P8-14R-Q is ideal for applications requiring secure connections in high-vibration environments, ensuring long-lasting performance.

Product Information

Standard Information

• Item Type: Ring Terminal
• Connection: Standard

Technical Specifications

• Catalog Number: P8-14R-Q
• Material: Copper
• Finish: Tin-Plated
• Size: 1/4 inch stud
• Wire Size: 8 AWG
• Voltage Rating: 2000 volts
• Temperature Rating: 302 degrees Fahrenheit (150 degrees Celsius)
• Standards: cULus Listed, CSA Certified
