Panduit P8-14R-Q Ring Terminal, Bare, 8 AWG, 1/4 inches Stud, PK25

Product Description

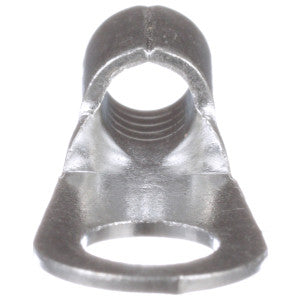

The Panduit P8-14R-Q Pan-Term® Terminal is a non-insulated, ring terminal. The brazed seam protects the terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. It is designed for 8 AWG wire and has a 1/4" stud size.

• Ring Terminal
• Large wire
• Non-insulated

Product Highlights

The Panduit P8-14R-Q ring terminal is non-insulated with brazed seam and internal barrel serrations, ensuring secure wire contact and tensile strength.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P8-14R-Q
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 8 AWG
• Packaging: 25 Per Bottle
• Insulation: Non-Insulated
• Part Status: Active
• Features: Brazed Seam
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 1/4 Stud
• Contact Finish: Tin
• Thickness: 0.040" (1.02mm)
• Insulation Diameter: 0.280" (7.11mm)
• Width - Outer Edges: 0.470" (11.94mm)
• Base Product Number: P8-14
• Length - Overall: 1.140" (28.96mm)
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UPC: 07498387079
• UNSPSC: 39121409
• Brand: Pan-Term
• Finish: Tin-Plated
• Standard: cULus Listed 587H E52164, CSA Certified LR31212
• Material: Copper
• Use With: CT-1701, CT-2600 (CD-2600-P8)
• Color: Metallic
• Conductor Size: 8 AWG
• Inner Diameter: 0.19 in.
• Outer Diameter: 0.27
• Rated Voltage: 2000V
• Stud Size: 1/4 in.
• Lug Wire Size: 8 AWG
• Color Family: Metallic
• Length: 1.14 in.
• Width: 0.47 in.
• Max. Temperature Rating: 302°F
• Barrel Length: 0.46 in
• Barrel Type: Brazed Seam
• Color Coding: Metallic
• Max Operating Temperature: 150 degrees C
• Size: 1/4"
• TC Connection: Standard
• Temperature Rating: 302 F
• Tongue Thickness: 0.04 in
• Tongue Width: 0.47 in
• Type: Ring Terminal
• Voltage: 2,000 Volt
• Wire Size: 8 AWG
• Pkg Qty: 25
• Sub Brand: Pan-Term
• 12-Digit UPC: 074983870790
• Product UPC: 07498387079
• Overall Length: 1.14 in
• Buy American Compliant: Y
• CA Prop65 Warning: No
• Prop 65: No
• Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
• MPN: P8-14R-Q
