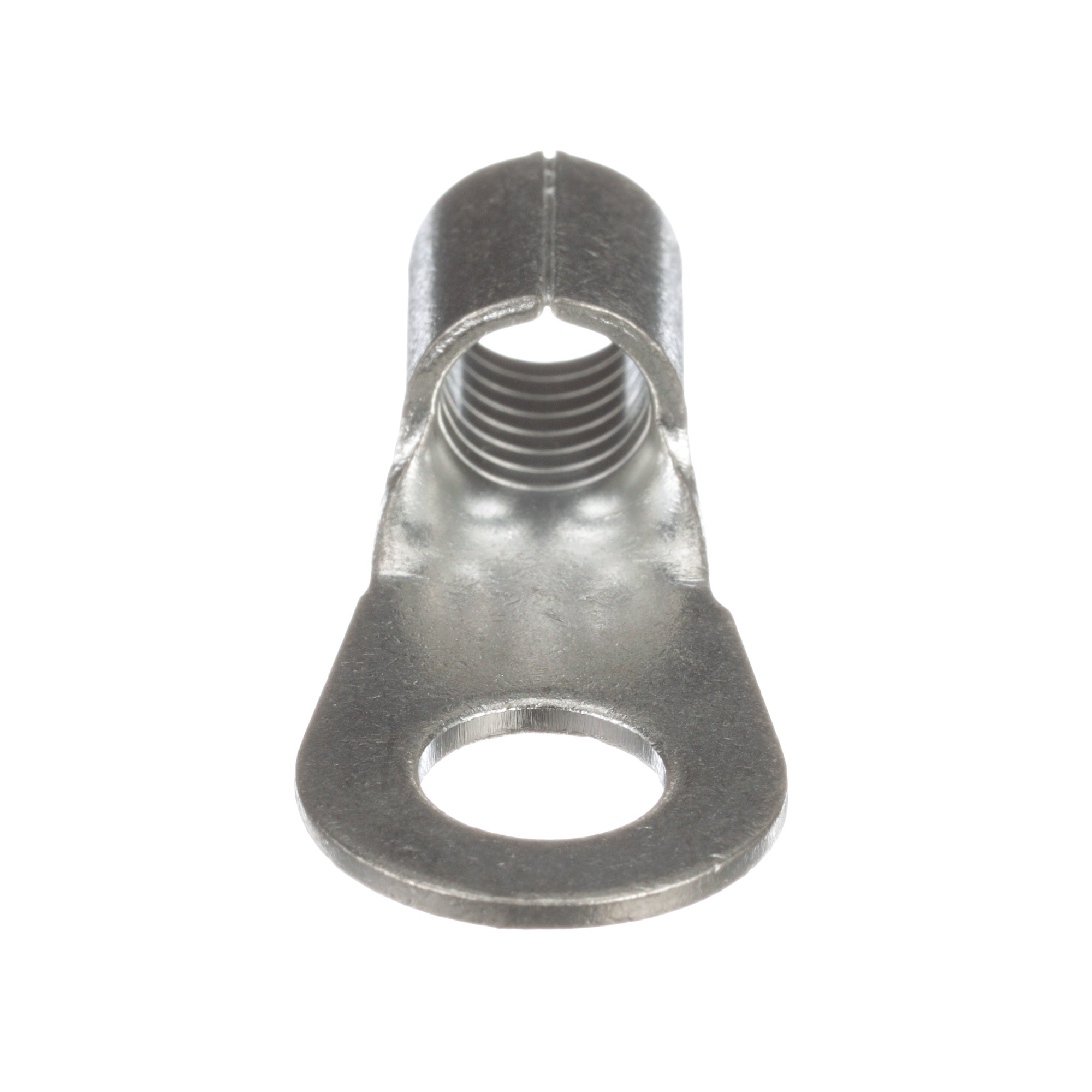

Panduit P4-56R-T Non-Insulated Ring Terminal 4 AWG 5/16 Inch Stud

Product Description

The Panduit P4-56R-T is a non-insulated, ring terminal designed for use with four AWG copper wire. It features a brazed seam that prevents the terminal barrel from splitting during the crimp process. Internal barrel serrations ensure strong wire contact and maximum tensile strength.

• Compatible with wire sizes #8 to #2 AWG
• Designed for high vibration applications
• Protective finish to improve durability

Product Highlights

This terminal's design allows for secure connections, making it ideal for applications where reliability is critical.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: P4-56R-T

Technical Specifications

• Type: Copper - Other
• Voltage Rating: 2000 V
• Wire Size: #4 AWG
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Stud Size: 5/16 inches
• Material: Copper
• Finish: Tin-Plated
• UPC: 074983870622
