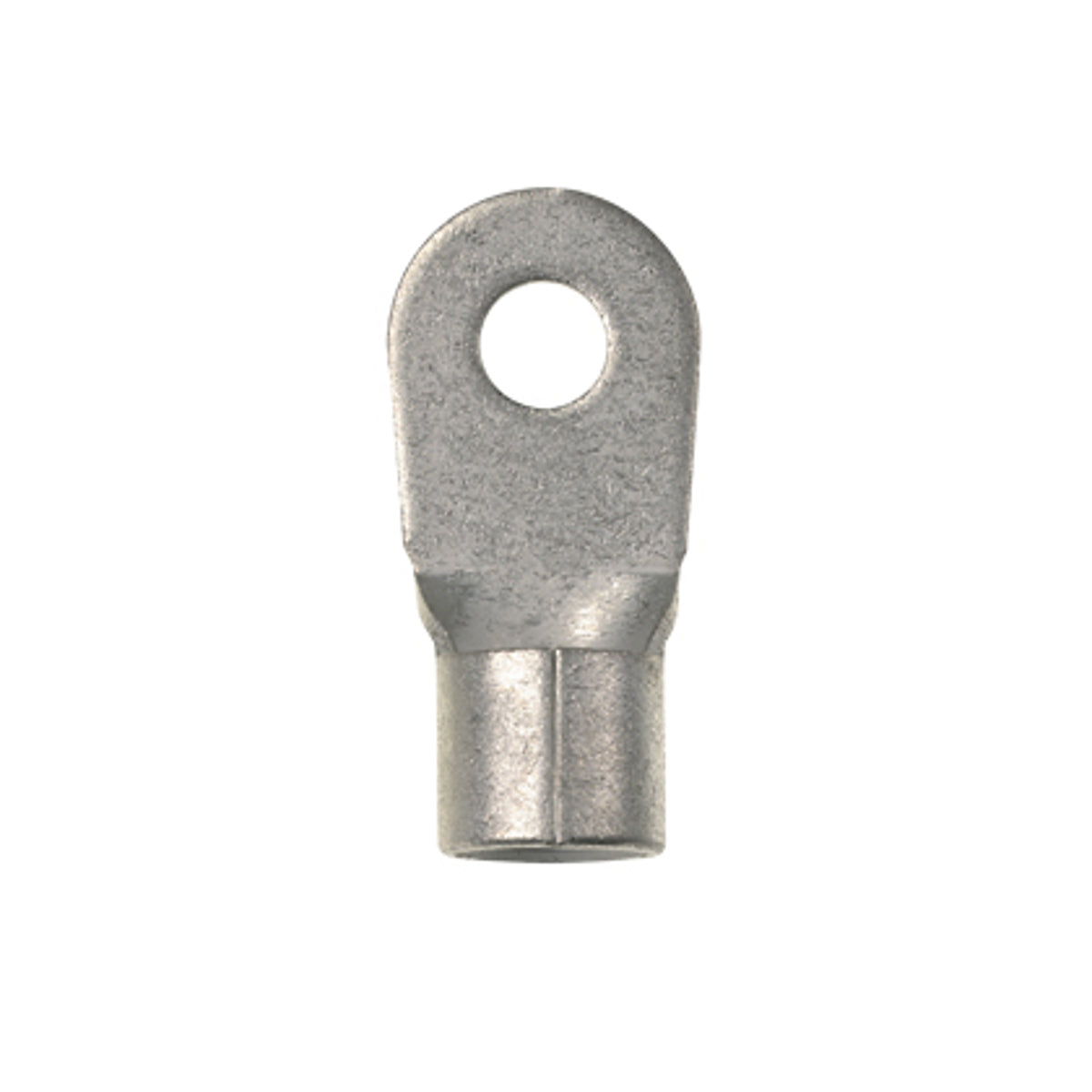

Panduit P4-12R-T Pan-Term Ring Terminal Power Non-Insulated 4 AWG

Product Description

The Panduit P4-12R-T is a Pan-Term ring terminal. This product features a non-insulated design suitable for high vibration applications. Designed for a conductor size of four AWG, it accommodates a half inch stud size. The terminal has a length of one point five five inches and is crafted from copper material.

• Designed for high vibration applications
• Features internal barrel serrations for strong contact
• Has a brazed seam to prevent barrel splitting during crimping

Product Highlights

Use this terminal for secure and reliable connections in various electrical applications.

Product Information

Standard Information

• Catalog Number: P4-12R-T
• Manufacturer: Panduit

Technical Specifications

• Material: Copper
• Conductor Size: 4 AWG
• Stud Size: 1/2 inch
• Length: 1.55 inches
• Voltage Rating: 2000 V
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Insulation: Non-Insulated
• Finish: Tin-Plated
• Weight: 0.03 lbs
