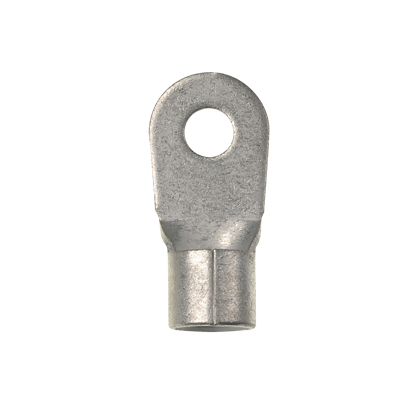

Panduit P2-56R-X Pan Ring Term Non-Insul 2Awg 5/16In

Product Description

The Panduit P2-56R-X Pan-Term ring terminal is non-insulated and part of the P-R Series. Designed for stranded conductors, it accommodates 2 AWG wire and has a 5/16 inch stud size. The terminal features internal barrel serrations for good wire contact and maximum tensile strength. It has a brazed seam that protects the barrel during crimping.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Barrel of terminal internally beveled to provide quick and easy wire insertion

Product Highlights

The Panduit P2-56R-X ring terminal ensures secure connections with high tensile strength.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P2-56R-X
• Country of Origin: Mexico

Technical Specifications

• Barrel Size: 0.37 in ID x 0.48 in OD
• Conductor Size: 2 AWG
• Conductor Type: Stranded
• Finish: Tin Plated
• Length: 1.46 in
• Manufacturer Part Number: P2-56R-X
• Material: Copper
• Series: P-R Series
• Stud Size: 5/16 in
• Temperature Rating: 302 deg F
• Tongue Size: 0.68 in W x 0.06 in THK
• Tongue Type: Ring
• Type: Non-Insulated
• Voltage Rating: 2000 V
• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Wire Gauge: 2 AWG
• Part Status: Obsolete
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam
• Contact Finish: Tin
• Base Product Number: P2-56
• Brand: Pan-Term
• Width: 0.68 in.
• Barrel Length: 0.56 in
• Barrel Type: Brazed Seam
• Color Coding: Metallic
• Enclosure: Ring shape
• Max Operating Temperature: 150 degrees C
• Size: 5/16"
• Stud Hole Size: M8
• Tc Connection: Standard
• Tongue Thickness: 0.06 in
• Tongue Width: 0.68 in
• Wire Size: 2 AWG
• Product Type: Terminals
• Outer Diameter: 0.48 in
• Overall Length: 1.46 in
• ARRA Compliant: Yes
• Buy American Compliant: Y
• Hazmat Flag: No
