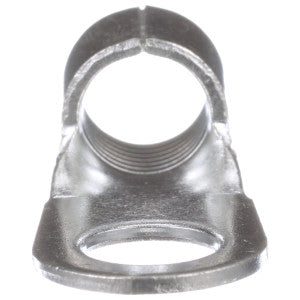

Panduit P2-38R-T Ring Terminal 2 AWG 3/8 inches Stud

Brand: PANDUIT
SKU: P2-38R-T
Availability: In Stock

Ships same day if ordered by 12 pm
$397.42
$397.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PANDUIT P2-38R-T is a ring terminal designed for fast assembly and reliable performance. This Pan-Term terminal features a brazed seam that protects the barrel from splitting during crimping. Internal barrel serrations ensure good wire contact and maximum tensile strength. It is made of electrolytic copper, offering an optimum combination of crimp forming and high conductivity.

  • Brazed seam protects terminal barrel from splitting during the crimp process.
  • Internal barrel serrations assure good wire contact and maximum tensile strength.
  • Made of electrolytic copper for optimum crimp forming and high conductivity

Product Highlights

The PANDUIT P2-38R-T ring terminal ensures reliable connections with its robust design and high-quality materials.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P2-38R-T
  • Country of Origin: Mexico
Technical Specifications
Category
Connectors, Interconnects
Terminals
Ring Connectors
Length - Overall
1.460" (37.08mm)
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Series
Pan-Term
Termination
Crimp
Packaging
Bulk
Wire Gauge
2 AWG
Part Status
Active
Insulation
Non-Insulated
Terminal Type
Ring
Features
Brazed Seam
Stud/Tab Size
3/8 Stud
Contact Material
Copper
Thickness
0.060" (1.52mm)
Contact Finish
Tin
Width - Outer Edges
0.680" (17.27mm)
Base Product Number
P2-38
Contact Finish Thickness
Tin
Finish
Tin-Plated
Standard
cULus Listed 587H E52164, CSA Certified LR31212
Material
Copper
Use With
CT-1701, CT-2600 (CD-2600-P2)
Inner Diameter
0.37 in.
Outer Diameter
0.48
Rated Voltage
2000V
Stud Size
3/8 in.
Lug Wire Size
2 AWG
Length
1.46 in.
Width
0.68 in.
Max. Temperature Rating
302 F
Product Series
Pan-Term Terminals
Family Series
Panduit Terminals, Pan-Term Terminals Series
Description
The P2-38R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Wire Size Range
2 AWG
Insulated
Non-Insulated
Plating Material
Tin
Maximum Temperature
302 F
Approvals
CSA, UL
