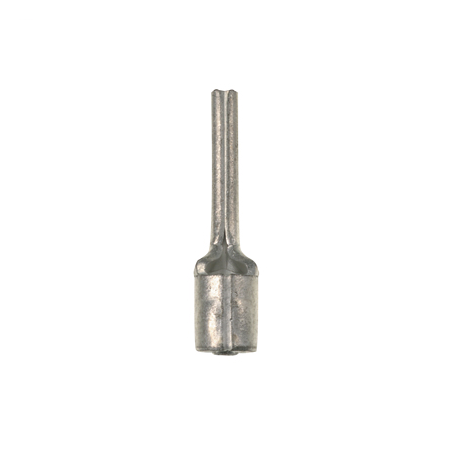

Panduit P18-P47-C Pin Non-Ins 22-18 AWG 0.49 Pin Length (Pack 100)

Product Description

The Panduit P18-P47-C is a non-insulated pin terminal for 22–18 AWG conductors with a 0.49 inch (12.45 mm) pin length. It is a tin-plated copper crimp terminal with a brazed barrel intended for use with pin-type terminal blocks. The terminal is UL rated per UL 486 to 600 V (for 18 and 14 gauge) and has a maximum recommended operating temperature of 302°F (150°C).

• Tin-plated copper pin terminal, non-insulated, for 22–18 AWG conductors; crimp termination
• Brazed barrel with internal serrations and beveled entry for secure crimps and easier wire insertion
• 0.49 in (12.45 mm) pin length; UL 486 rating to 600 V (18 and 14 gauge); maximum recommended temperature 302°F (150°C); packaged in packs of 100

Product Highlights

Non-insulated tin-plated copper pin terminal, 22–18 AWG, 0.49 in pin, brazed barrel, UL 486 rated to 600 V, 302°F max; pack of 100

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-P47-C
• Country of Origin: Mexico
