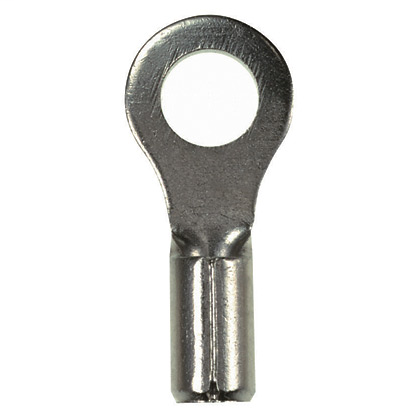

Panduit P18-8RHT6-C Ring Terminal #8 Crimp

Product Description

The PANDUIT P18-8RHT6-C is a high-temperature ring terminal designed for secure wire connections. Suitable for 22-18 AWG wires with a #8 stud size. It features a copper body with a tin-plated finish for enhanced durability and conductivity. The non-insulated design includes a brazed seam barrel for secure connections.

• Brazed Seam
• Serrated Termination
• High Temperature Ring Terminal

Product Highlights

High Temperature Ring Terminal, 22 – 18 AWG, #8 stud size, non-insulated, standard package.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-8RHT6-C
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.710" (18.03mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Packaging: Bulk
• Wire Gauge: 18-22 AWG
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 8 Stud
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Tin Plated
• Width - Outer Edges: 0.310" (7.87mm)
• Base Product Number: P18
• Finish: Tin Plated
• Standard: cULus Listed 587H E52164
• Material: Copper
• Use With: CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
• Conductor Size: 22-16 AWG
• Inner Diameter: 0.07 in.
• Outer Diameter: 0.31
• Rated Voltage: 2000V
• Stud Size: #8
• Lug Wire Size: 22-16 AWG
• Length: 0.71 in.
• Width: 0.31 in.
• Max. Temperature Rating: 650 F
• Product Category: Crimp Terminals, Housings, Splices, & Lugs
• Crimp Terminals, Housings, & Splices: Crimp Terminals, Housings, & Splices
• Manufacturer Part Number: Panduit P18-8RHT6-C
• Maximum Operating Temperature: 650 F
• Voltage: 2000 V, 2 kV
• Outside Diameter: .31 in, 7.9 mm
• Insulation Material: Non-Insulated
• Barrel Length: .28 in, 7 mm
• Barrel Type: Brazed Seam
• Product Type: Ring Terminal
• RoHS Compliant: Yes
