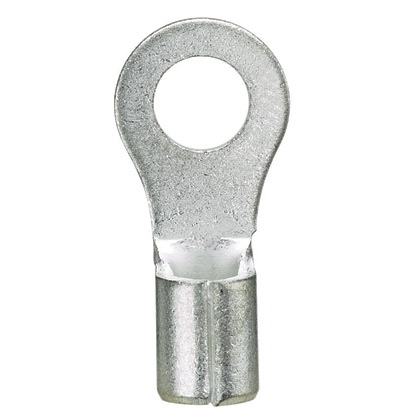

Panduit P18-8R-C Pan Ring Terminal #8

Brand: PANDUIT
SKU: P18-8R-C
Availability: In Stock

Ships same day if ordered by 12 pm
$55.52
$55.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Panduit P18-8R-C Pan-Term ring terminal is designed for fast assembly and reliable performance. This ring terminal is made for solid/stranded conductors from 22 to 16 AWG and has a #8 stud size. It features internal barrel serrations to assure good wire contact and maximum tensile strength.

  • Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
  • Ring tongue design assures a secure connection in high vibration applications
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications

Product Highlights

The P18-8R-C ring terminal is suitable for use with CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160 and CT-260 crimp tools.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P18-8R-C
  • Country of Origin: MX
Technical Specifications
Application
For CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160 and CT-260 crimp tool
Color
Silver
Finish
Tin Plated
Length
0.71 in
Material
Copper
Stud Size
#8
Barrel Size
0.7 in ID x 0.14 in OD
Barrel Type
Brazed Seam/Serrated/Standard
Tongue Size
0.31 in W x 0.03 in THK
Tongue Type
Ring
Conductor Size
18-22 AWG
Conductor Type
Solid/Stranded
Voltage Rating
2000 VAC
Temperature Rating
302 deg F
Category
Connectors, Interconnects
Terminals
Ring Connectors
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Series
Pan-Term
Termination
Crimp
Packaging
Bulk
Insulation
Non-Insulated
Terminal Type
Circular
Features
Brazed Seam, Serrated Termination
Contact Finish
Tin
Base Product Number
P18
Brand
Pan-Term
Standard
UL Listed 587H E52164, CSA Certified LR31212
Use With
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Inner Diameter
0.07 in.
Insulation Material
Non-Insulated
Outer Diameter
0.31
Lug Wire Size
22-18 AWG
Color Family
Metallic
Width
0.31 in.
Wire Gauge Max
16 AWG
Mounting Style
Cable Mount / Free Hanging
Contact Plating
Tin
Contact Material
Copper
Compliance
UL
Mounting Angle
Straight
Product Type
Terminals
Subcategory
Terminals
