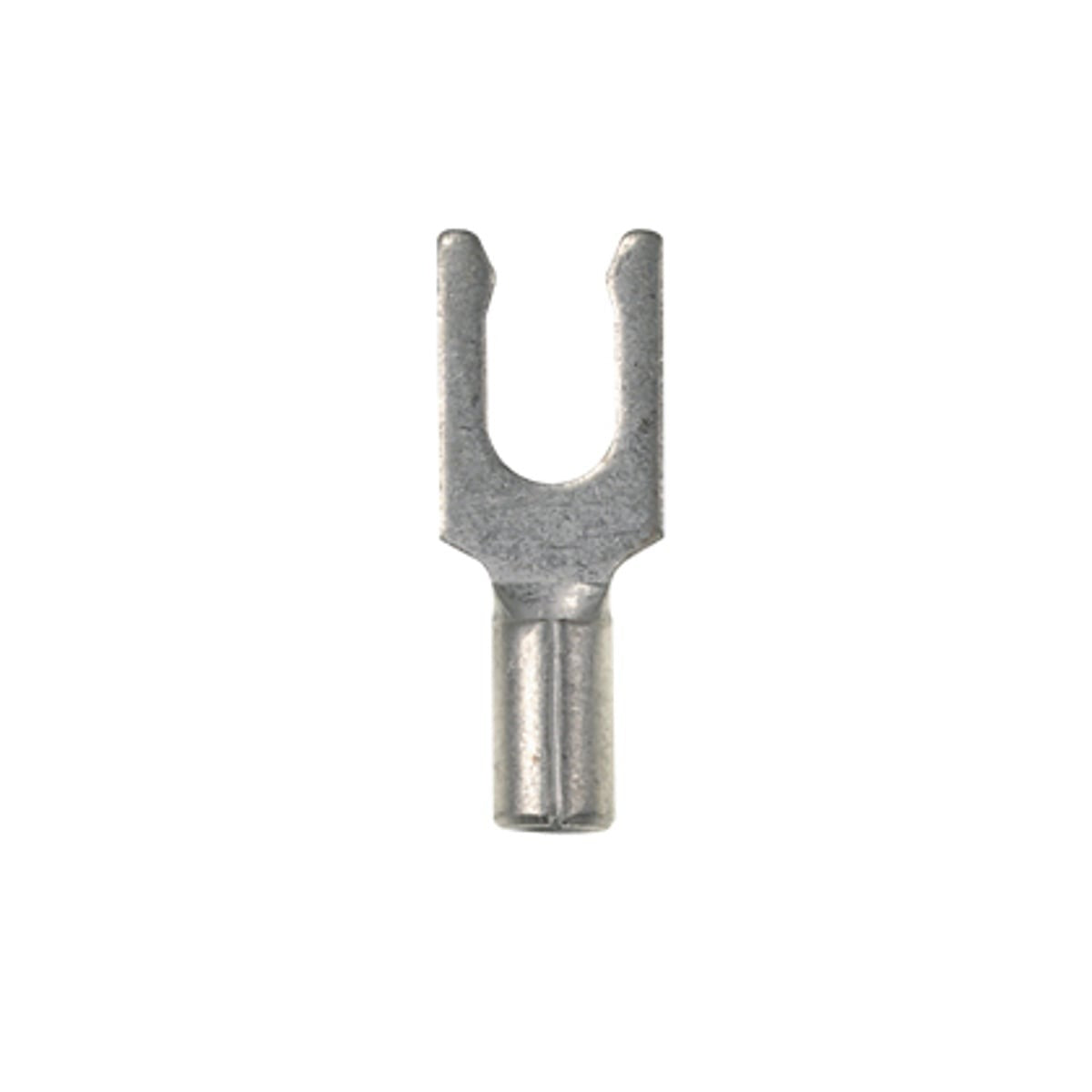

Panduit P18-8LF-C Fork locking non-insulated 22-16 AWG #8 (Pack of 100)

Brand: PANDUIT
SKU: P18-8LF-C
Availability: In Stock

Ships same day if ordered by 12 pm
$53.71
$53.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Panduit P18-8LF-C is a locking fork (spade) terminal for crimp termination, designed for 22-16 AWG stranded copper conductors and a #8 stud. The non-insulated tin-plated copper terminal uses a brazed seam barrel and locking fork tongue for secure connections and is rated to 2000 V and 302 F (150 C). Typical length is 0.74 in and units are supplied in packs of 100.

  • Locking fork, non-insulated spade terminal for 22-16 AWG conductors; fits #8 stud.
  • Tin-plated copper construction with brazed seam barrel, 0.07 in ID x 0.14 in OD; overall length 0.74 in.
  • Electrical rating 2000 V; maximum temperature 302 F (150 C); UL Listed 587H E52164 and CSA Certified LR31212.

Product Highlights

Locking fork crimp terminal, tin-plated copper, brazed seam barrel, 22-16 AWG, #8 stud, pack of 100.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P18-8LF-C
  • Country of Origin: Mexico
Technical Specifications
Brand
Panduit
Manufacturer Part Number
P18-8LF-C
Panduit Part Number
10044470
UNSPSC Code
39121400
Type
Fork terminal (spade), locking fork
Series
P-LF (Pan-Term)
Material
Copper
Finish
Tin plated
Insulation
Non-insulated
Wire Gauge
22-16 AWG
Stud Size
#8
Length
0.74 in (18.8 mm)
Dimensions
0.74 in L x 0.29 in W x 0.03 in T
Barrel ID
0.07 in
Barrel OD
0.14 in
Barrel Type
Brazed seam (standard barrel)
Tongue Width
0.29 in
Tongue Thickness
0.03 in
Tongue Inside Opening
0.160 in (4.06 mm)
Wire Strip Length
0.28 in (7.1 mm)
Clearance
0.23 in
Voltage Rating
2000 V (2 kV)
Temperature Rating
302 F (150 C)
Termination
Crimp
Mounting Type
Screw / free-hanging (in-line)
Contact Material
Copper
Contact Finish
Tin
Packaging
Pack of 100 (bulk/factory package 100)
Country of Origin
Mexico
Standards/Certifications
UL Listed 587H E52164; CSA Certified LR31212; UL 486A/486B; RoHS compliant
Maximum Metric Conductor Size (mm2)
1.5
Minimum Metric Conductor Size (mm2)
0.5
Maximum Voltage (V)
2000
Maximum Temperature (F)
302
Maximum Temperature (C)
150
Catalog Number
P18-8LF-C
Base Product Number
P18
Product Type
Loose piece fork terminal
