Panduit P18-8F-M fork terminal (22-16 AWG / #8 stud / pack 1000)

Product Description

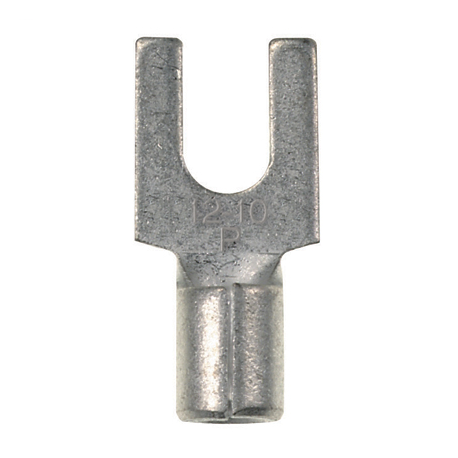

Panduit P18-8F-M is a non-insulated fork (spade) terminal for 22-16 AWG wire that provides crimp termination for electrical connections. The P18 series terminal uses a tin-plated copper contact with a brazed barrel, fits a #8 stud, and has a straight mounting angle with an overall length of 17.53 mm (0.69 in). It is supplied in factory packs of 1000 and is listed as obsolete.

• Non-insulated fork terminal with crimp termination for 22-16 AWG wire
• Tin-plated copper contact with brazed barrel; fits #8 stud; straight mounting angle
• Overall length 17.53 mm (0.69 in); factory pack quantity 1000; UL compliance

Product Highlights

Non-insulated crimp spade terminal, tin-plated copper, #8 stud, 22-16 AWG, 17.53 mm length, pack of 1000

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-8F-M
• Country of Origin: Mexico
