Panduit P18-6RHT6-C Ring Noninsul 22-18 AWG #6 Stud (Pack of 1000)

Product Description

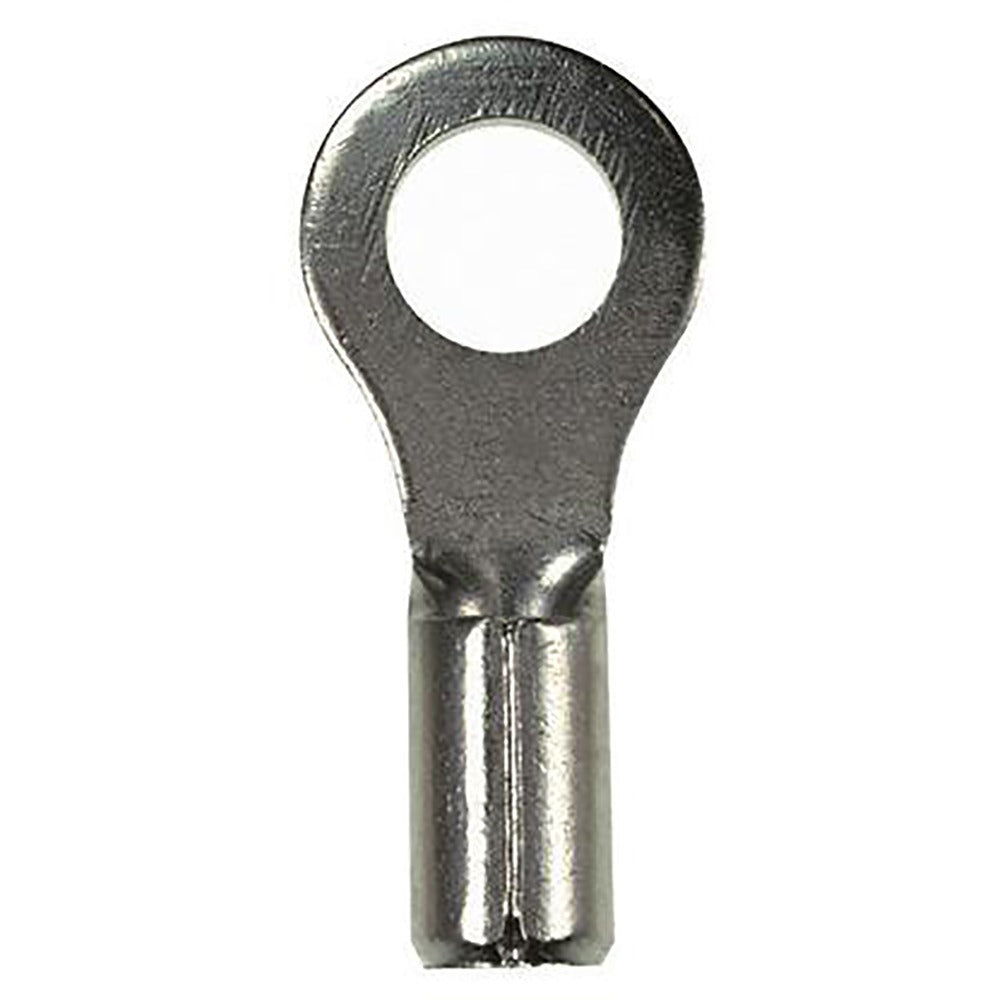

Panduit P18-6RHT6-C is a high-temperature, non-insulated ring terminal for crimp termination of 22–18 AWG conductors that fits a #6 stud. The terminal is constructed of copper with a tin-plated finish, features a brazed seam and internal barrel serrations for secure wire contact, and is rated to 2000 VAC (2 kV) and 650°F (343°C). Typical applications include high-vibration and high-temperature electrical connections.

• Accepts 22–18 AWG conductors and fits #6 stud; termination style: crimp
• Rated 2000 VAC (2 kV) and 650°F (343°C); copper base with tin-plated finish
• Barrel ID 0.07 in, Barrel OD 0.14 in, overall length 0.62 in; packaged pack of 1000

Product Highlights

High-temperature, non-insulated copper ring terminal for 22–18 AWG with tin plating, 2 kV rating, and pack of 1000.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-6RHT6-C
• Country of Origin: Mexico
