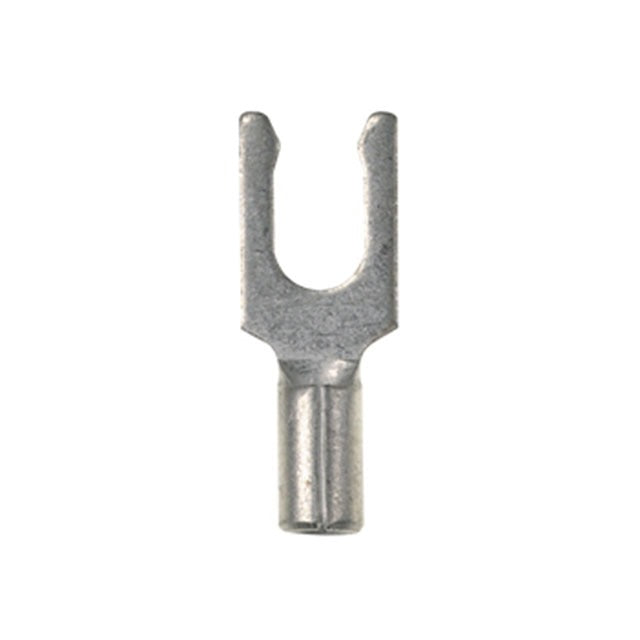

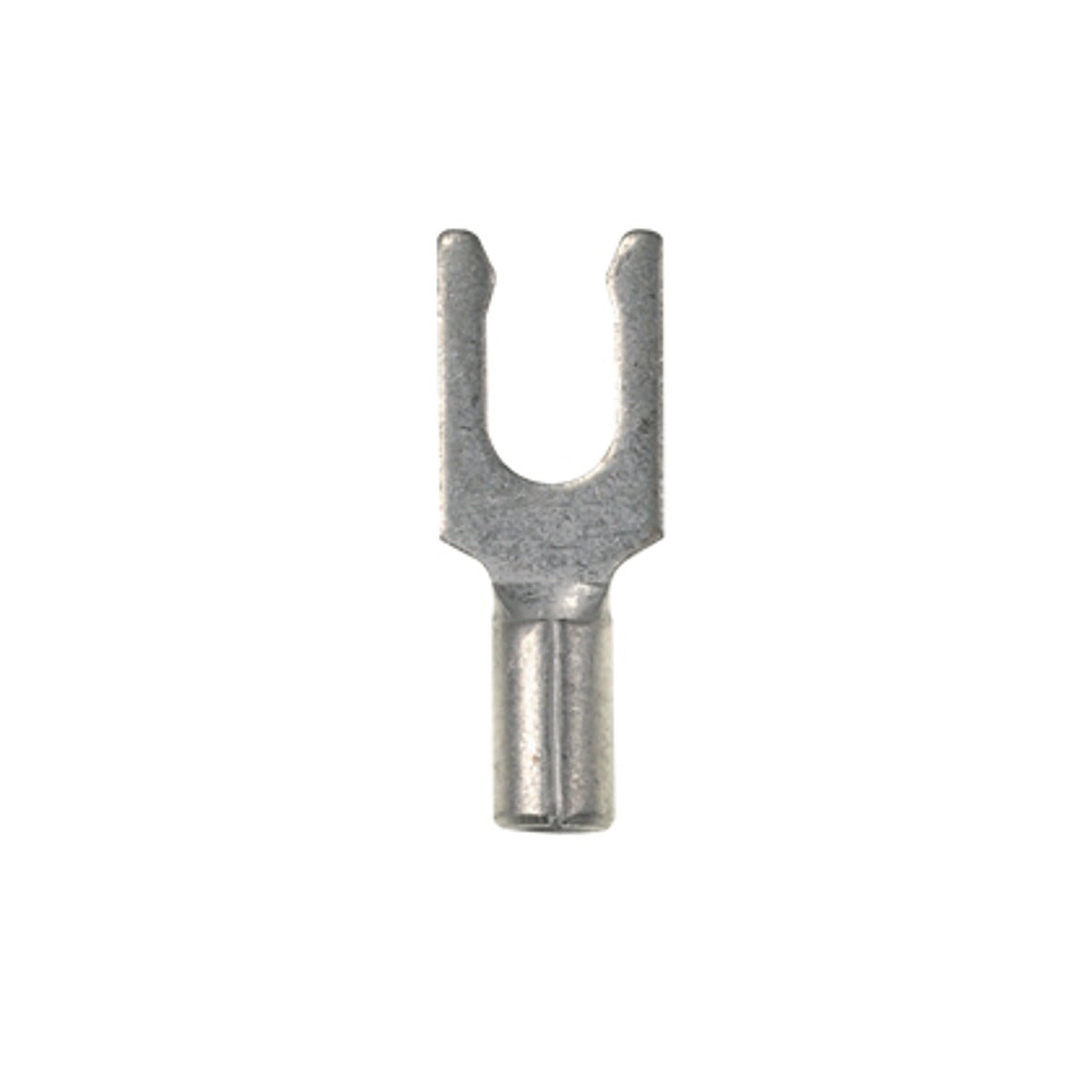

Panduit P18-6LF-C Fork Locking Non-Insulated 22-16 AWG #6 Pack 100

Product Description

Panduit P18-6LF-C is a locking fork terminal, non-insulated, for 22-16 AWG conductors that fits a #6 stud and is supplied in standard packs of 100. The tin-plated copper terminal features a brazed-seam barrel with internal serrations for improved wire contact and tensile strength, an overall length of 0.68 in, and a wire strip length of 0.28 in. It is rated to 2000 VAC and 302 F (150 C) and meets UL and CSA standards.

• Non-insulated locking fork terminal for 22-16 AWG conductors; fits #6 stud; supplied in packs of 100.
• Tin-plated copper construction with brazed-seam barrel and internal serrations; overall length 0.68 in; barrel ID 0.07 in x OD 0.14 in.
• Electrical and thermal ratings: 2000 VAC (2 kV) maximum voltage; maximum temperature 302 F (150 C); UL Listed 587H E52164 and CSA Certified LR31212.

Product Highlights

Locking non-insulated fork terminal for 22-16 AWG, #6 stud; tin-plated copper with brazed seam barrel; rated 2000 VAC and 302 F; pack of 100.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-6LF-C
• Country of Origin: Mexico
