Panduit P18-6F-C Pan Fork Terminal #6

Brand: PANDUIT
SKU: P18-6F-C
Availability: In Stock

Ships same day if ordered by 12 pm
$55.69
$55.69
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

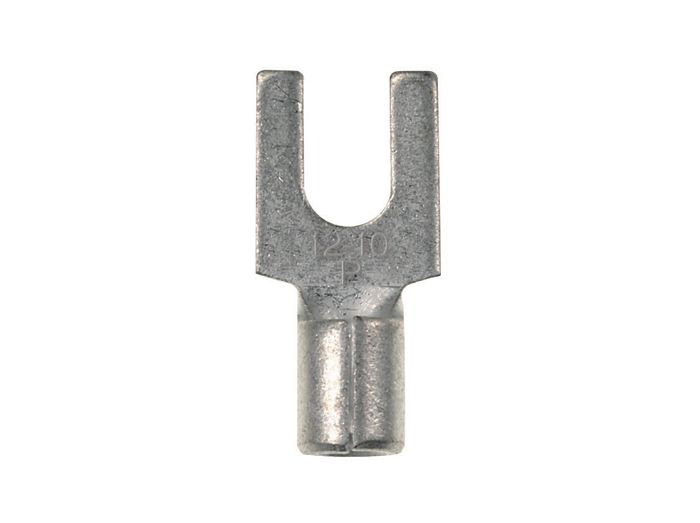

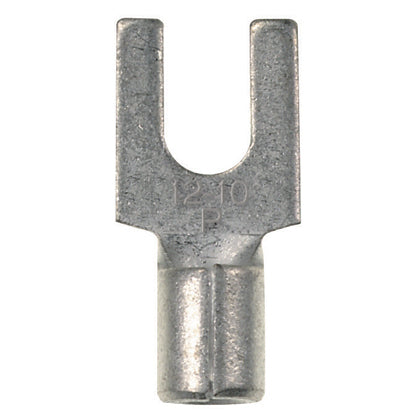

The PANDUIT P18-6F-C Pan-Term Fork Terminal is a loose piece, non-insulated terminal designed for copper stranded conductors. Suitable for #16 - #22 AWG wires and M3.5/#6 studs. It features a brazed seam barrel and standard fork tongue. This terminal is ideal for creating secure and reliable connections in various electrical applications.

  • Fork design allows easy installation without removing the fastener.
  • Internal barrel serrations ensure good wire contact and maximum tensile strength.
  • Brazed seam protects the terminal barrel from splitting during crimping.

Product Highlights

The PANDUIT P18-6F-C provides a reliable, non-insulated fork terminal solution for quick and secure electrical connections.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P18-6F-C
  • Country of Origin: MX
Technical Specifications
Barrel Size
0.07 in ID x 0.14 in OD
Conductor Size
#16
Conductor Type
Copper Stranded
Finish
Tin Plated
Length
0.63 in
Manufacturer Part Number
P18-6F-C
Material
Copper
Series
P-F Series
Specifications
9/32 in L Wire Strip, 0.21 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure
Standards/Approvals
ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 65 File No. LR31212|RoHS Compliant|UL 486A|UL 486B/587H File No. E52164
Stud Size
M3.5
Temperature Rating
302 deg F
Tongue Size
0.3 in W x 0.03 in THK
Tongue Type
Standard Fork
Type
Loose Piece Non-Insulated
Voltage Rating
2000 V
Mounting Type
Free Hanging (In-Line)
Termination
Crimp
Wire Gauge
16-22 AWG
Insulation
Non-Insulated
Features
Brazed Seam
Terminal Type
Standard
Contact Finish
Tin
Contact Material
Copper
Width - Outer Edges
0.300" (7.62mm)
Tongue Inside Opening
0.150" (3.81mm)
Length - Overall
0.630" (16.00mm)
Product Series
Pan-Term Terminals
Wire Size Range
22-16 AWG
Plating Material
Tin
Maximum Temperature
302 °F
Approvals
CSA, UL
