Panduit P18-4R-C Ring Terminal 18-22AWG #4

Product Description

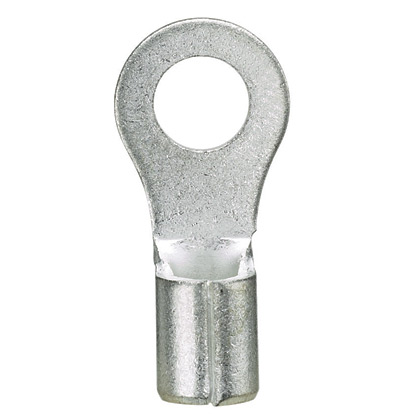

The PANDUIT P18-4R-C is a ring terminal designed for secure and reliable connections. This non-insulated ring terminal is suitable for 18-22 AWG wires and features a #4 stud size. It is made from high-conductivity copper with tin plating for corrosion resistance.

• Designed for 18-22 AWG wires
• Features a #4 stud size
• Constructed with a brazed seam and serrated termination for enhanced performance

Product Highlights

The PANDUIT P18-4R-C ring terminal ensures a reliable electrical connection in various applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-4R-C
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.620" (15.75mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Wire Gauge: 18-22 AWG
• Part Status: Obsolete
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 4 Stud
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.250" (6.35mm)
• Base Product Number: P18
• Barrel Length: 0.25 in
• Barrel Type: Brazed Seam
• Color Coding: Silver
• Conductor Size: 18 AWG
• Enclosure: Ring shape
• Material: Copper
• Max Operating Temperature: 150 degrees C
• Min Operating Temperature: 105 degrees C
• Size: M2.5
• TC Connection: Standard
• Temperature Rating: 302 F
• Tongue Thickness: 0.03 in
• Tongue Width: 0.25 in
• Type: Ring Terminal
• Voltage: 2,000 Volt
• Wire Size: 22-16 AWG
• Brand: Panduit Corp.
• Sub Brand: Pan-Term
• Product Type: Terminals
• Length: 0.62 Inch
• Outer Diameter: 0.25 in
• Overall Length: 0.62 in
• Width: 0.25 in
• Finish: Tin-Plated
• Standard: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
• Use With: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
• Inner Diameter: 0.07 in.
• Insulation Material: Non-Insulated
• Rated Voltage: 2000V
• Stud Size: #4
• Lug Wire Size: 22-16 AWG
