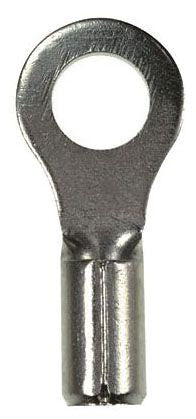

Panduit P18-14R-C Ring Terminal

Product Description

The PANDUIT P18-14R-C is a ring terminal designed for secure, permanent electrical terminations in panel wiring, control cabinets, and field service applications. Ring terminals provide a closed-loop lug that fastens directly to a screw or stud, creating a reliable mechanical and electrical connection. This terminal is installed by licensed electricians and experienced electrical technicians working on control panels, power distribution assemblies, and equipment wiring harnesses where a dependable crimp-on termination is required.

The P18-14R-C is suited for use in residential, commercial, and light industrial electrical installations. It is commonly installed in junction boxes, control enclosures, motor starters, and switchgear assemblies where ring-style terminations are called for by the wiring diagram or equipment specification. Its closed-ring design prevents accidental disconnection from the terminal stud during service or vibration.

Key Features

• Closed-ring lug design for positive, stud-mounted termination
• Crimp-style installation for fast, consistent field termination
• Suitable for panel wiring, control cabinets, and equipment assemblies
• Resists accidental disconnection from terminal screw or stud

Compatibility

Designed as an OEM-style ring terminal for use in standard electrical panel wiring and control cabinet termination applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements. De-energize and lock out the circuit before terminating or replacing any ring terminal. Use a calibrated crimp tool rated for the terminal series to ensure a proper mechanical and electrical crimp. Do not solder over a crimp connection unless specifically required by the equipment manufacturer.

Technical Specifications

• UPC: 07498380208

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-14R-C
