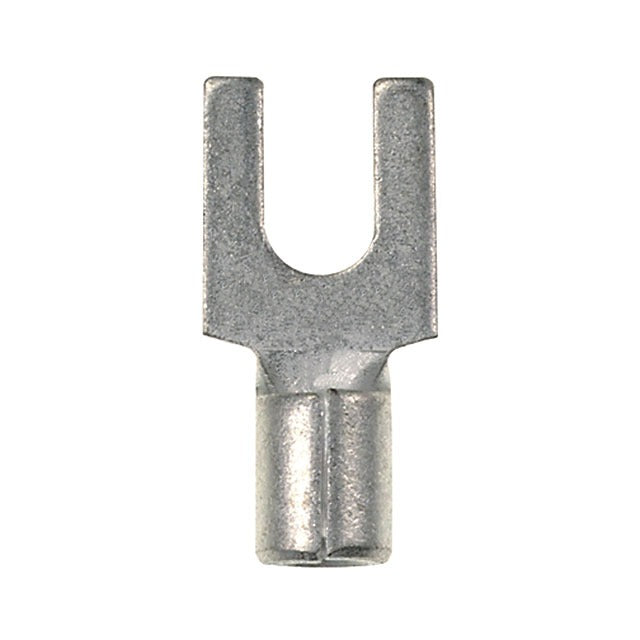

Panduit P18-14F-C Fork terminal non-insulated 22-16 AWG 1/4 stud standard package

Product Description

Panduit P18-14F-C is a non-insulated fork terminal designed for 22-16 AWG conductors and fitting a 1/4 inch (M6) stud. The terminal uses a tin-plated copper contact with brazed barrel construction and is suitable for crimp termination. It meets UL Listed 587H E52164 and CSA Certified LR31212 standards and is rated to 2000 V with a maximum operating temperature of 150 degrees Celsius.

• Accepts 22-16 AWG wire, fits 1/4 inch (M6) stud; designed for crimp termination
• Copper contact with tin-plated finish and brazed barrel/seam construction
• Meets UL Listed 587H and CSA LR31212; maximum operating temperature 150°C and voltage rating 2000 V

Product Highlights

Non-insulated tin-plated copper fork terminal for 22-16 AWG to 1/4 in studs; brazed barrel; UL and CSA certified; 2000 V, 150°C; standard package (pack quantity 100).

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-14F-C
• Country of Origin: Mexico
