Panduit P18-10RHT6-C Ring Terminal High Temperature #10 Stud

Product Description

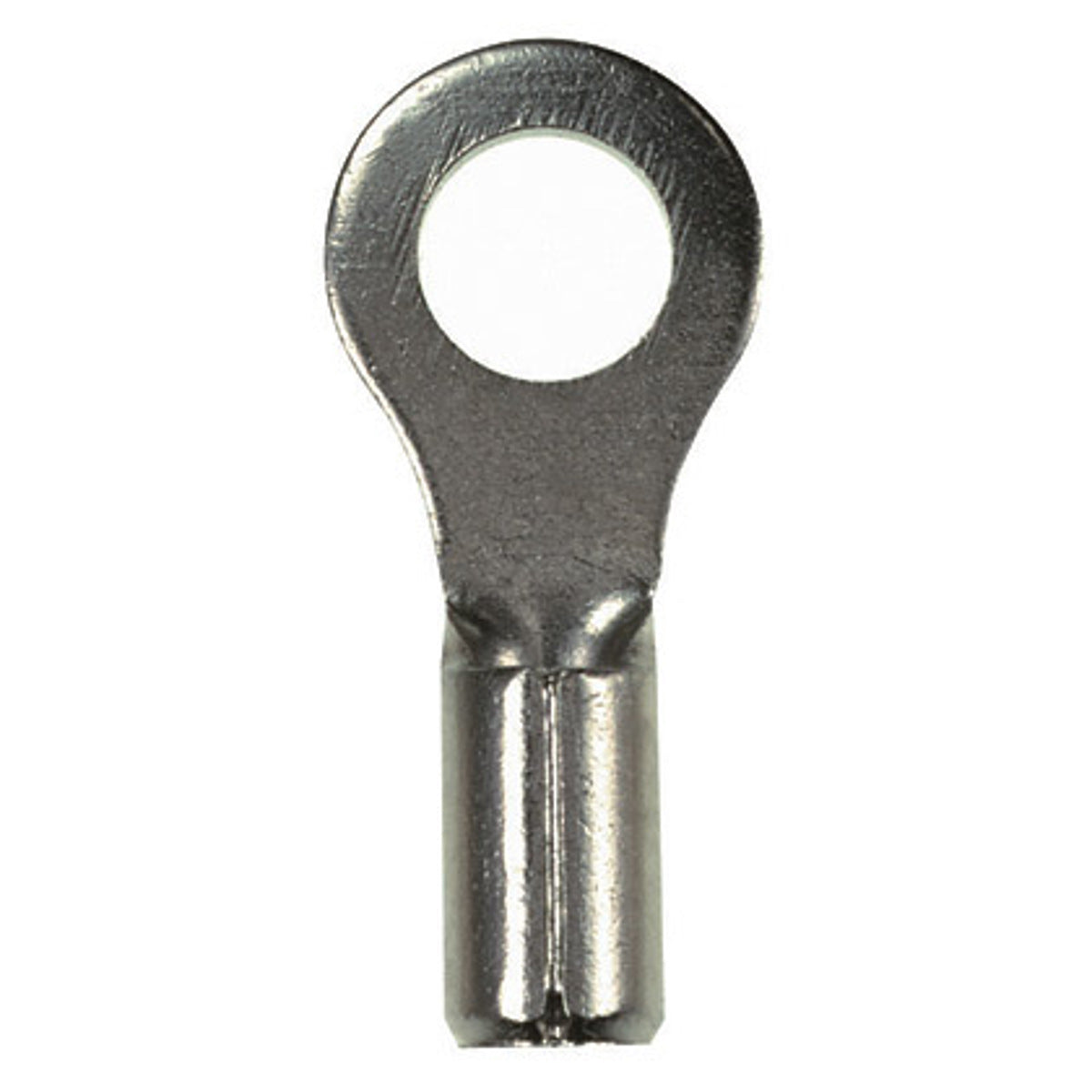

The PANDUIT P18-10RHT6-C is a ring terminal, type P-RHT high temperature, designed for solid/stranded conductors from 22 to 18 AWG and a #10 stud. It features a beveled edge, brazed seam, serrated standard barrel, and is made of tin plated copper. This ring terminal has a voltage rating of 2000 VAC and a temperature rating of 650 deg F.

• Continuously molded design provides reliable, consistent performance.
• Fork design provides for fast and easy installation.
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

High-temperature ring terminal for secure and efficient electrical connections in demanding environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-10RHT6-C
• Country of Origin: MX

Technical Specifications

• MPN: P18-10RHT6-C
• Type: Type P-RHT High Temperature
• Conductor Type: Solid/Stranded
• Conductor Size: 16 AWG
• Material: Copper
• Finish: Tin Plated
• Stud Size: #10
• Length: 0.71 in
• Barrel Size: 0.07 in ID x 0.4 in OD
• Barrel Type: Beveled Edge/Brazed Seam/Serrated/Standard
• Tongue Size: 0.31 in W x 0.03 in THK
• Tongue Type: Ring
• Voltage Rating: 2000 VAC
• Temperature Rating: 650 deg F
• Country of Origin: MX
• Insulation: Non-Insulated
• Standard: cULus Listed 587H E52164
• Wire Size: #16 AWG
