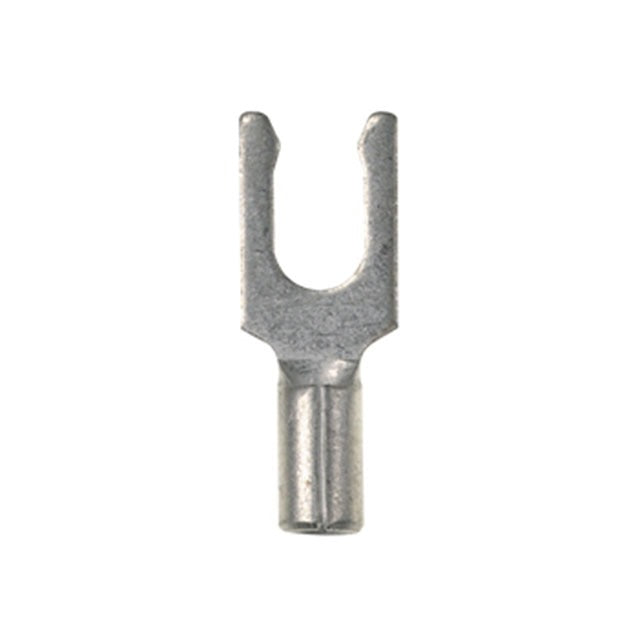

Panduit P18-10LF-C locking fork terminal 22-16 AWG #10 stud standard package

Product Description

Panduit P18-10LF-C is a locking fork terminal, non-insulated, designed for crimp termination of 22-16 AWG conductors and to fit a #10 stud. The connector uses a tin-plated copper contact with a brazed seam barrel and a crimp termination style. It is supplied in standard packaging (100 pieces) and is rated to 2,000 V with a maximum operating temperature of 302°F (150°C).

• Locking fork, non-insulated design for 22-16 AWG conductors and #10 stud applications
• Tin-plated copper contact with brazed seam barrel for crimp termination
• Electrical rating up to 2000 V and temperature rating up to 302°F (150°C); UL and CSA listed

Product Highlights

Non-insulated locking fork terminal, tin-plated copper, brazed seam, fits 22-16 AWG and #10 stud, 100 per package.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P18-10LF-C
• Country of Origin: Mexico
