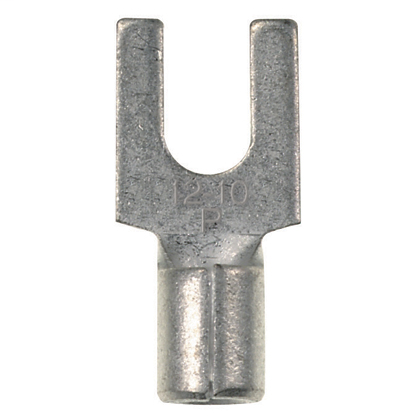

Panduit P18-10F-C Fork Terminal Non-Insulated 22-16 AWG #10 Stud Size

Brand: PANDUIT
SKU: P18-10F-C
Availability: In Stock

Ships same day if ordered by 12 pm
$58.01
$58.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PANDUIT P18-10F-C is a fork terminal designed for fast assembly and reliable performance. Constructed from copper with a tin-plated finish, this non-insulated terminal supports 22-16 AWG wire and is compatible with #10 studs. It is RoHS compliant and features a brazed seam.

  • Brazed Seam
  • Non-insulated fork terminal
  • Supports 22 - 16 AWG wire gauge

Product Highlights

The PANDUIT P18-10F-C fork terminal ensures secure and efficient crimp connections for various applications.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P18-10F-C
  • Country of Origin: Mexico
Technical Specifications
MPN
P18-10F-C
Brand
Panduit
Category
Connectors, Interconnects
Terminals
Spade Connectors
Mounting Type
Free Hanging (In-Line)
Manufacturer
Panduit Corp
Termination
Crimp
Series
Pan-Term
Wire Gauge
16-22 AWG
Packaging
Bulk
Insulation
Bare
Part Status
Active
Features
Brazed Seam
Terminal Type
Beveled, Standard Barrel
Contact Finish
Tin
Stud/Tab Size
10 Stud
Contact Material
Copper
Width - Outer Edges
0.350" (8.89mm)
Tongue Inside Opening
0.200" (5.08mm)
Length - Overall
0.710" (18.03mm)
Base Product Number
P18
Maximum Operating Temperature
150 °C, 302 °F
Stud Size
#10
Stud Hole Size
1/5 in, 4.8 mm
Material
Copper
Insulation Material
None
Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Barrel Type
Brazed
Finish
Tin Plated
Product
Crimp Spade Terminals
Fork Type
Standard
ECCN
EAR99
Country of Origin
MX - Mexico
UPC
07498380504
UNSPSC
39121409
Standard
UL Listed 587H E52164; CSA Certified LR31212
Use With
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Color
Metallic
Conductor Size
22-16 AWG
Inner Diameter
0.07 in.
Outer Diameter
0.14
Rated Voltage
2000V
Lug Wire Size
22-16 AWG
Color Family
Metallic
Length
0.71 in.
Width
0.35 in.
Packaged Quantity
100
Product Name
Terminal Connector
Product Type
Terminal Connector
American Wire Gauge
16AWG
Connector Plating
Tin
Connector Type
Fork Terminal
Limited Warranty
1-Year
Environmentally Friendly
Yes
Approval
UL, CSA
Locking
No
Temperature Rating
150 Deg C
Wire Range
22 to 16 AWG
Overall Length
18 mm
