Panduit p14-8r-m Ring Terminal 18-14 Awg 8 Stud 1000-pack

Product Description

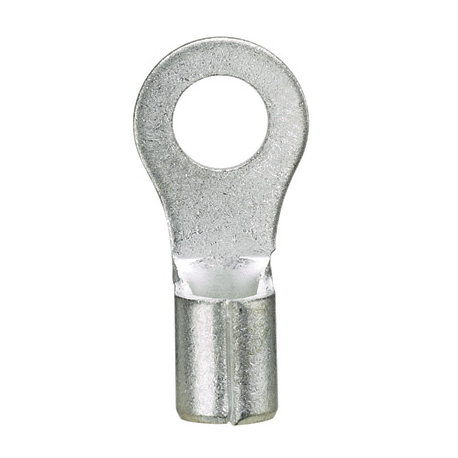

The PANDUIT p14-8r-m is a non-insulated ring terminal designed for secure, permanent wire-to-stud connections in electrical and panel wiring applications. Rated for 18-14 AWG wire and an 8 stud size, it features a brazed-seam barrel construction and a tin-plated finish for reliable conductivity and corrosion resistance. At 0.71 inches overall length and 0.31 inches width, this compact terminal is suited for tight termination layouts. Licensed electricians, panel builders, and industrial wiring technicians are the primary installers. Each package contains 1000 terminals, making this a practical bulk purchase for high-volume wiring projects or contractor stocking.

This terminal is used in residential, commercial, and light industrial electrical installations where a clean, non-insulated ring lug is required. Common applications include control panel wiring, grounding connections, and equipment terminations where a separate wire ferrule or insulation sleeve is added at the technician's discretion. The 8 stud size fits standard machine screw termination points commonly found in electrical enclosures and junction boxes.

Key Features

• Brazed-seam barrel for a strong, reliable wire grip on 18-14 AWG conductors
• Tin-plated finish enhances conductivity and provides corrosion resistance
• Non-insulated design allows use with separate sleeving or heat-shrink where required
• 8 stud size fits standard machine screw termination points
• Rated for max operating temperature of 150 degrees C
• Bulk pack of 1000 terminals reduces per-unit cost for high-volume work

Compatibility

Designed as an OEM-style non-insulated ring terminal for use with 18-14 AWG wire on 8 stud size termination points in standard electrical panel and control wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use a calibrated crimping tool rated for non-insulated ring terminals to ensure a proper mechanical and electrical connection. Do not over-crimp or re-crimp a terminal that has already been seated on a conductor.

Technical Specifications

• Wire Range: 18-14 AWG
• Stud Size: 8
• Barrel Type: Brazed Seam
• Finish: Tin-Plated
• Color Coding: Silver
• Max Operating Temperature: 150 degrees C
• Overall Length: 0.71 inches
• Width: 0.31 inches
• Package Quantity: 1000
• Package Weight: 1.900 pounds
• Package Dimensions: 5.15 inches L x 3.4 inches W x 3.45 inches H

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: p14-8r-m
