Panduit P14-8F-M Pan-Term Loose Piece Fork - #8 Stud - 18-14 AWG

Product Description

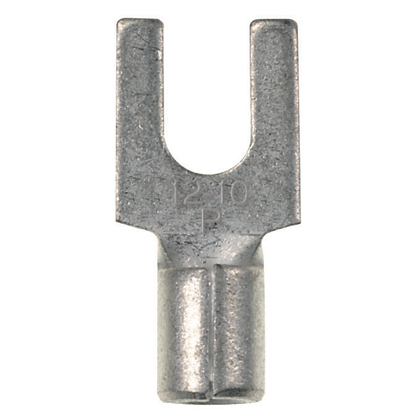

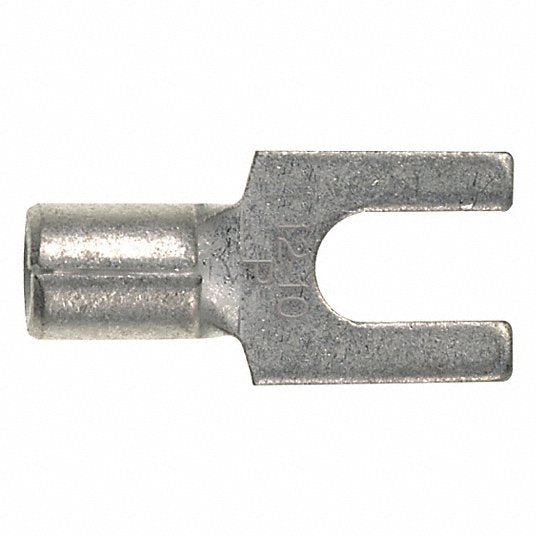

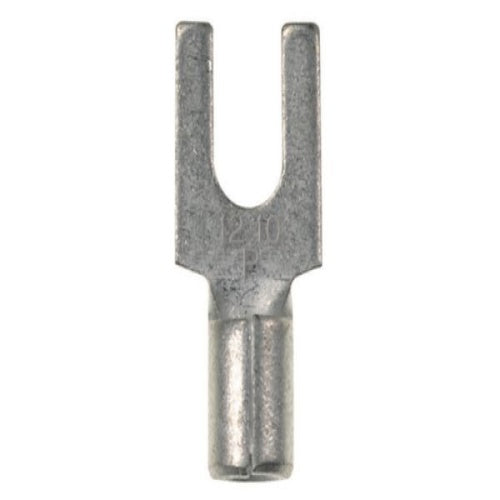

The Panduit P14-8F-M is a fork terminal, non-insulated, suitable for 18-14 AWG wires with a #8 stud size. The fork design allows for fast and easy installation without removing the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. The barrel of the terminal is internally beveled.

• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Barrel of terminal internally beveled to provide

Product Highlights

The Panduit P14-8F-M fork terminal ensures efficient and reliable electrical connections with its durable construction and user-friendly design.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-8F-M
• Country of Origin: Mexico

Technical Specifications

• Terminal Stud Size Opening: #8
• Component: Spade Terminal
• Manufacturer: Panduit
• Terminal for Wire Gauge: 18-14 AWG
• Maximum Operating Temperature: 150 °C, 302 °F
• Overall Length: 17.5 mm, .69 in
• Stud Size: #8
• Stud Hole Size: 4/25 in, 4.2 mm
• Outside Diameter: .14 in, 3.6 mm
• Material: Copper
• Insulation Material: None
• Maximum Wire Size: 14 AWG
• Minimum Wire Size: 18 AWG
• Barrel Type: Brazed
• Finish: Tin Plated
• Product: Crimp Spade Terminals
• Fork Type: Standard
• Brand: PANDUIT
• Manufacturer Part Number: P14-8F-M
• Series: CT
• Barrel Length: 0.27 in
• Compatible Grainger Part Number: 376T32; 376T39; 376T59; 38YU60; 38YU63
• Compatible Manufacturer Model Number: CT-100A; CT-1570; CT-160; CT-1701 (P10); CT-200; CT-2500 (CT-2570CH); CT-260; CT-600-A (CT-570CH)
• Compatible with Product Type: Crimp Tool; Crimper; Wire Stripper
• Connection Material: Copper
• Contact Finish: Tin
• Contact Material: Copper
• Display Sell UOM: PK
• Fork Terminal Shape: Standard Fork
• Insulation Color: Bare
• Insulation Coverage: None
• Insulation Type: Non-Insulated
• Maximum Temperature: 302 °F
• Maximum Voltage: 2,000 V
• Package Qty: 1,000
• Seam Style: Brazed
• Special Features: Barrel of Terminal Internally Beveled to Provide; Fork Design Provides for Fast and Easy Installation; Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength
• Standards: UL 587-H; UL Listed
• Strip Length: 1/4 in
• Termination Style: Crimp
• Fork Length: 0.43 in
• Fork Thickness: 0.03 in
• Tongue Width: 0.31 in
• UNSPSC: 39121432
