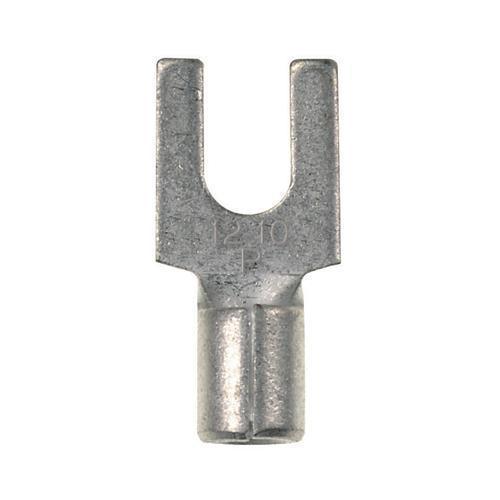

Panduit P14-8F-M Fork Non-Insul 16-14AWG #8 PK1000

Product Description

The Panduit P14-8F-M is a non-insulated fork terminal designed for conductor sizes ranging from 18 to 14 AWG, fitting #8 stud sizes. This fork terminal facilitates quick installation without needing to remove fasteners, making it suitable for various electrical tasks.

• UL and CSA rated for up to 2000 V.
• Temperature rated for maximum operation at 302°F (150°C).
• Designed with internal barrel serrations for improved wire contact.

Product Highlights

This fork terminal offers a reliable connection through its profile design and is engineered to withstand high temperatures and voltage ratings.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: P14-8F-M

Technical Specifications

• Type: Loose Piece Non-Insulated
• Conductor Size: #14
• Stud Size: M4
• Length: 0.69 inches
• Barrel Size: 0.09 inches ID x 0.16 inches OD
• Tongue Size: 0.31 inches W x 0.03 inches THK
• Material: Copper
• Voltage Rating: 2000 V
• Temperature Rating: 302°F
