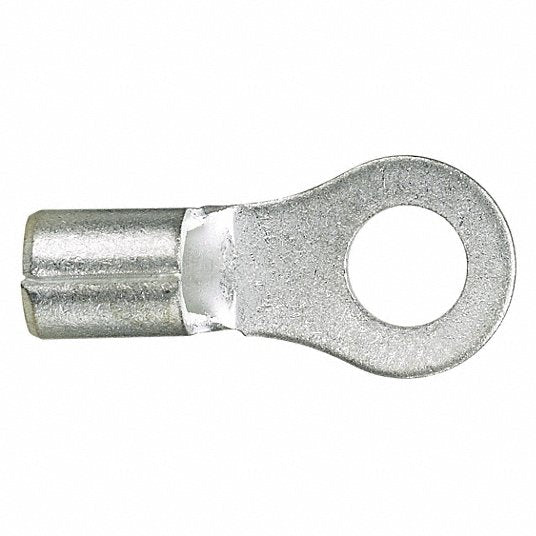

Panduit P14-6R-M Ring Terminal Circular 14-18 AWG #6 Stud

Product Description

The PANDUIT P14-6R-M is a ring terminal connector designed for secure connections. This circular ring terminal is suitable for 14-18 AWG wires and features a #6 stud size. The ring tongue design ensures a reliable connection, even in high vibration environments. Internal barrel serrations enhance wire contact and tensile strength.

• Brazed Seam
• Serrated Termination
• Ring tongue design assures a secure connection in high vibration applications.

Product Highlights

Bare, non-insulated ring terminals allow for precise crimping and inspection of wire contact, suitable for higher-temperature applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-6R-M
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.620" (15.75mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Packaging: Bulk
• Wire Gauge: 14-18 AWG
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 6 Stud
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.250" (6.35mm)
• Base Product Number: P14
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• Brand: Pan-Term
• Finish: Tin-Plated
• Material: Copper
• Use With: CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
• Inner Diameter: 0.09 in.
• Outer Diameter: 0.16
• Rated Voltage: 2000V
• Stud Size: #6
• Lug Wire Size: 18-14 AWG
• Length: 0.62 in.
• Width: 0.25 in.
• Max. Temperature Rating: 302 F
• Insulation Color: Bare
• Insulation Coverage: None
• Maximum Temperature: 302 F
• Maximum Voltage: 2,000 V
• Maximum Wire Size: 14 AWG
• Minimum Wire Size: 18 AWG
• Overall Length: 0.62 in
• Package Qty: 1,000
• Tongue Width: 0.25 in
• Seam Style: Brazed
• Applications: Standards
• Standards: CSA C22.2 No. 65; UL 486A; UL 486B
• Strip Length: 1/4 in
• Terminal Shape: Ring
• Termination Style: Crimp
• Ring Thickness: 0.03 in
