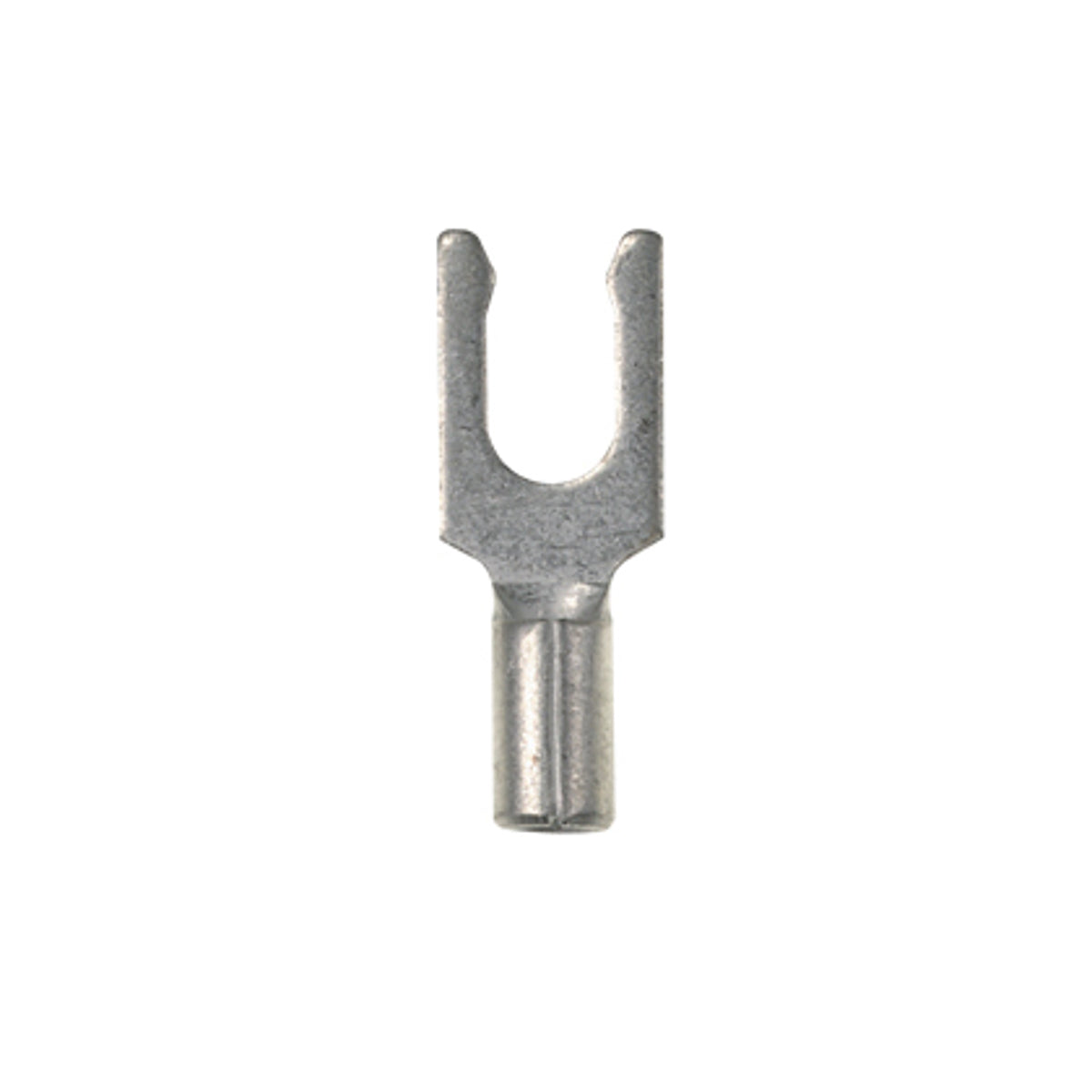

Panduit P14-6LF-C Pan-Term Locking Fork Terminal #6

Product Description

The PANDUIT P14-6LF-C Pan-Term locking fork terminal is non-insulated and accommodates 18-14 AWG wire and a #6 stud size. The fork design allows for quick installation without removing the fastener. It features internal barrel serrations for good wire contact and maximum tensile strength. It is UL Listed and CSA Certified.

• Fork design for fast and easy installation
• Internal barrel serrations assure good wire contact
• Locks in place for secure connection

Product Highlights

The PANDUIT P14-6LF-C locking fork terminal ensures secure electrical connections in various applications. Its durable construction and ease of use make it a reliable choice for electrical projects.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-6LF-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: P14-6LF-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Connection: Standard
• Enclosure: Fork shape
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• UPC: 074983809066
• GTIN: 00074983809066
• Item Type: Locking Fork Terminal
• Size: #6
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Voltage Rating: 2000
• Wire Size: #14 AWG
• Series: P-LF
• Stud Size: #6
• Tongue Type: Locking Fork
• Type: Loose Piece Non-Insulated
• Wire Gauge: 14-16 AWG
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Features: Brazed Seam, Serrated Termination
• Contact Finish: Tin
• Contact Material: Copper
• Width - Outer Edges: 0.250" (6.35mm)
• Length - Overall: 0.700" (17.78mm)
• Barrel Size: 0.09 in ID x 0.16 in OD
• Conductor Size: #14
• Conductor Type: Copper Stranded
• Tongue Size: 0.25 in W x 0.03 in THK
