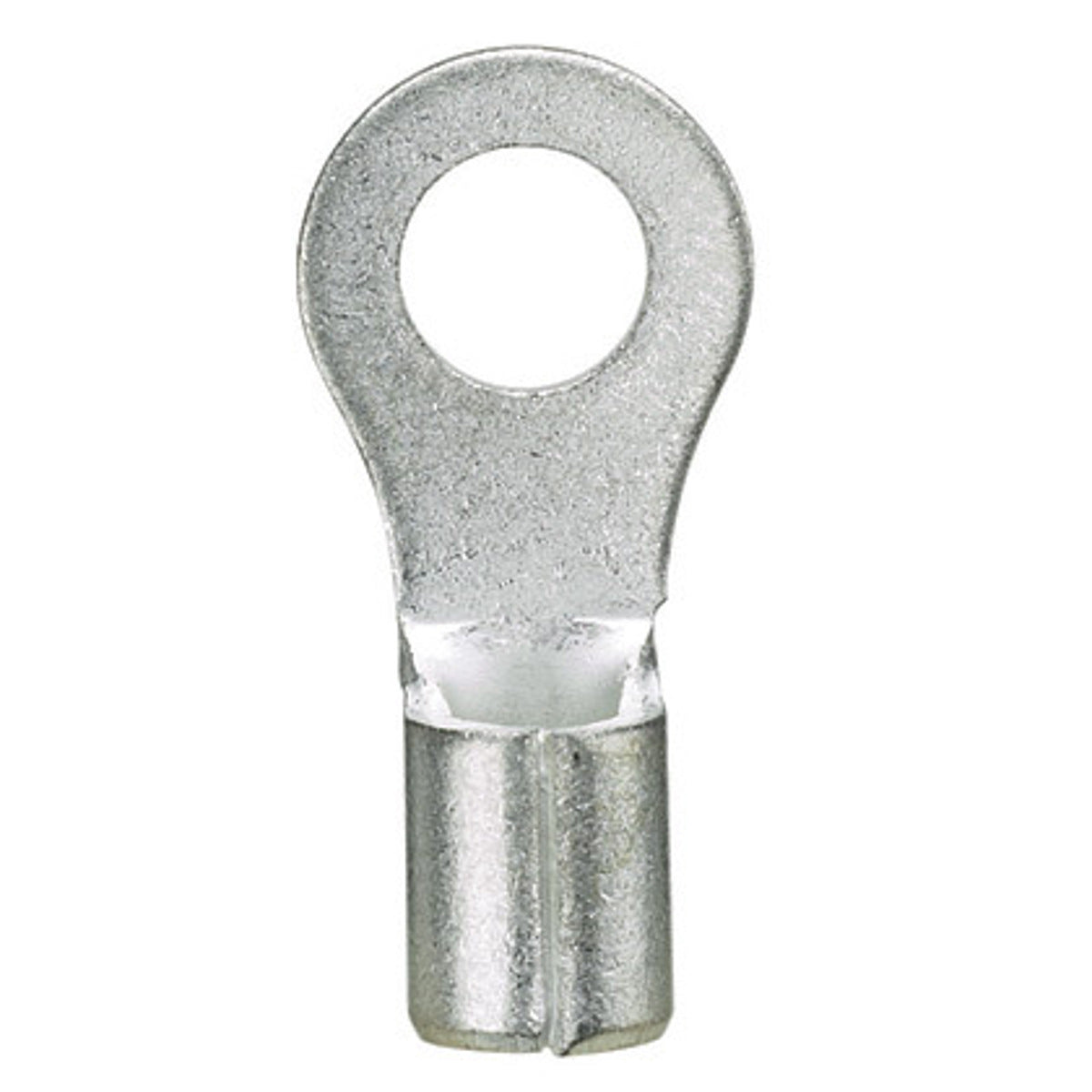

Panduit P14-14R-M Pan-Term Ring Terminal 1/4 inches Stud

Brand: PANDUIT
SKU: P14-14R-M
Availability: In Stock

Ships same day if ordered by 12 pm
$271.52
$271.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PANDUIT P14-14R-M Pan-Term Ring Terminal is designed for 14-18 AWG wires and has a 1/4" stud size. Constructed from durable copper with a tin-plated finish, this non-insulated ring terminal ensures reliable conductivity and corrosion resistance. It is suitable for various applications, including professional, DIY, and industrial settings.

  • Designed for secure attachment to a 1/4" stud
  • Crafted from durable copper with a tin-plated finish
  • Ensures reliable conductivity and corrosion resistance

Product Highlights

This ring terminal guarantees high performance and safety for any wiring project.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P14-14R-M
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
P14-14R-M
Manufacturer
Panduit
Brand
Panduit
Sub Brand
Pan-Term
Country of Origin
Mexico
Made in USA
No
Connection
Standard
Enclosure
Ring shape
Finish
Tin-Plated
Insulation
Non-Insulated
Material
Copper
Standard
UL Listed 587H E52164, CSA Certified LR31212
UPC
074983802234
GTIN
00074983802234
Item Type
Ring Terminal
Size
1/4"
Temperature Rating
302 Degrees Fahrenheit (150 Degrees Celsius)
Voltage Rating
2000
Wire Size
#14 AWG
Maximum Operating Temperature
150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage
2000 V, 2 kV
Outside Diameter
11.7 mm, .46 in
Barrel Length
.34 in, 8.6 mm
Barrel Type
Brazed Seam
Product Type
Ring Terminal
ECCN
EAR99
UNSPSC
39121409
Use With
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Conductor Size
18-14 AWG
Inner Diameter
0.09 in.
Outer Diameter
0.16
Stud Size
1/4 in.
Lug Wire Size
18-14 AWG
Length
0.91 in.
Width
0.46 in.
Max. Temperature Rating
302 F
Primary Type
Ring Terminal
Series
Pan-Term Series
Type
Ring Terminal
