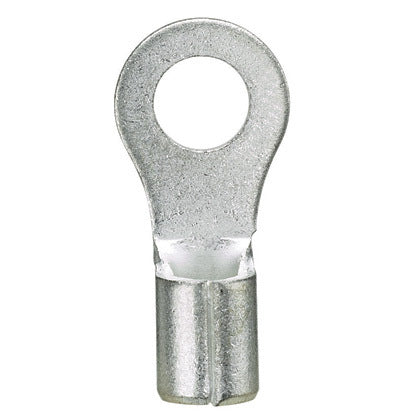

Panduit P14-14R-C Non-Insulated Ring Terminal

Product Description

The PANDUIT P14-14R-C Pan-Term Terminal is a non-insulated ring terminal. It features a brazed seam that protects the terminal barrel from splitting during crimping. Internal barrel serrations ensure good wire contact and maximum tensile strength. It is UL and CSA rated up to 2000 V per UL 486.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process

Product Highlights

The PANDUIT P14-14R-C ring terminal provides secure wire connection with high tensile strength.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-14R-C
• Country of Origin: MX - Mexico

Technical Specifications

• Type: Type P-R Non-Insulated
• UNSPSC Code: 39121400
• Barrel Size: 0.9 in ID x 0.16 in OD
• Conductor Size: 14 AWG
• Conductor Type: Solid/Stranded
• Finish: Tin Plated
• Length: 0.91 in
• Material: Copper
• Specifications: 9/32 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65|CT-100/CT-100A/CT-200/CT-570/CT-600-A/CT-1570/CT-2500/CT-160/CT-260|RoHS Compliant|UL 486A/486B
• Stud Size: 1/4 in
• Temperature Rating: 302 deg F
• Tongue Size: 0.46 in W x 0.03 in THK
• Tongue Type: Ring
• Voltage Rating: 2000 V
• Wire Gauge: 14-18 AWG
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Contact Material: Copper
• Contact Finish: Tin
• Overall Length: 0.91 in
• Overall Width: 0.46 in
• Wire Size: 16-14 AWG
• Max Operating Temperature: 150 degrees C
• Min Operating Temperature: 302 degrees F
• Outer Diameter: 0.16 in
