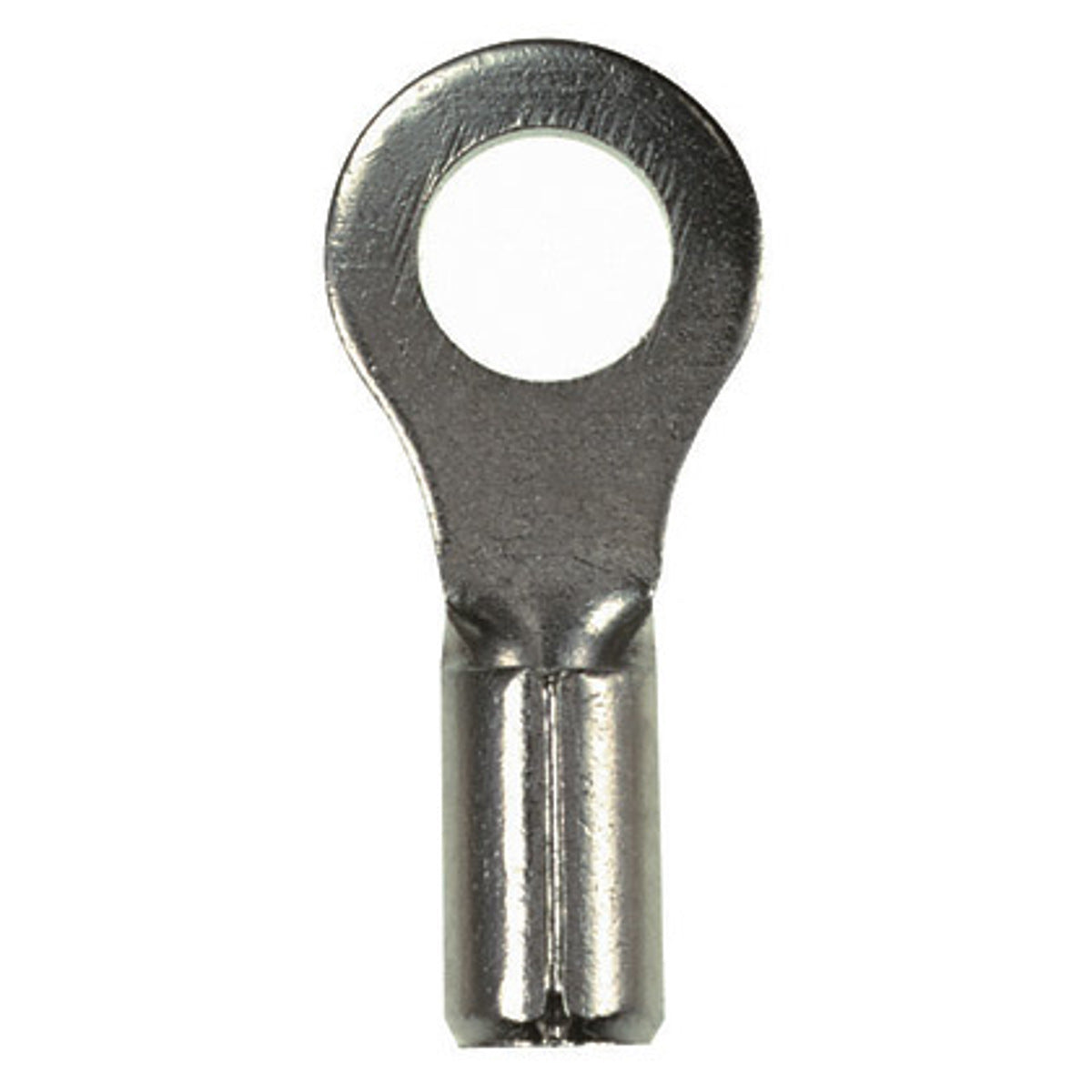

Panduit P14-10RHT6-C Ring Terminal High Temperature Non-Insulated #10 Stud Size

Product Description

The Panduit P14-10RHT6-C is a ring terminal designed for use with solid or stranded copper wire from #18 to #14 AWG. This terminal supports #10 studs and has a nickel-plated copper construction. It has a maximum voltage rating of 2,000 volts and a temperature rating of 650 degrees Fahrenheit.

• Suitable for #18 to #14 AWG wire
• Nickel-plated for corrosion resistance
• Compatible with various Panduit crimping tools

Product Highlights

This ring terminal is suitable for industrial, automotive, and high-temperature applications. Its robust design features internal barrel serrations for effective conductor contact and a brazed seam to prevent barrel splitting during crimping.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: P14-10RHT6-C

Technical Specifications

• Wire Size: #14 AWG
• Stud Size: #10
• Material: Copper
• Finish: Nickel-Plated
• Insulation: Non-Insulated
• Connection: Standard
• Temperature Rating: 650 Degrees Fahrenheit
• Voltage Rating: 2000 Volts
