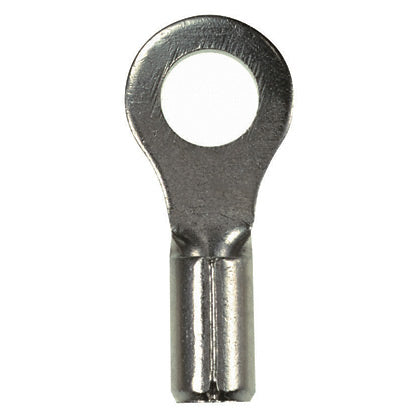

Panduit P14-10RHT6-C Ring Terminal

Product Description

The Panduit P14-10RHT6-C is a high-temperature ring terminal designed for fast assembly and reliable performance. It is suitable for use with CT-100A, CT-200, CT-600-A, CT-1570, and CT-2500 tools. This non-insulated ring terminal is made from nickel-plated copper and accommodates 14-18 AWG wire and a #10 stud size.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process

Product Highlights

High-temperature ring terminal with a secure connection, internal barrel serrations, and a brazed seam for reliable performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-10RHT6-C
• Country of Origin: Mexico

Technical Specifications

• IGCC: 4543
• Type: Ring Terminal
• Finish: Nickel-Plated
• Material: Copper
• Standard: cULus Listed 587H E52164
• Enclosure: Ring shape
• Wire Size: 14 AWG
• Connection: Standard
• Insulation: Non-Insulated
• Manufacturer: PANDUIT
• Voltage Rating: 2000 V
• Temperature Rating: 650 Degrees Fahrenheit (343 Degrees Celsius)
• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.710" (18.03mm)
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Wire Gauge: 14-18 AWG
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 10 Stud
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Nickel
• Width - Outer Edges: 0.310" (7.87mm)
• Base Product Number: P14
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• ARRA Compliant: Y
• Buy American Compliant: Y
• Conductor Type: Solid/Stranded
• Country of Origin: MEX
• EU RoHS Indicator: Y
• Size: #10
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 65UL486A/486B
• Sub Brand: Pan-Term®
• Tongue Size: 0.31 in W x 0.03 in THK
• Tongue Type: Ring
• UNSPSC: 39121409
• Barrel Type: Brazed Seam
• Conductor Size: 18 to 14 AWG
• Barrel Length: 0.28 in
• Color Coding: Silver
• Max Operating Temperature: 343 degrees C
• Min Operating Temperature: 343 degrees C
• Tongue Thickness: 0.03 in
• Tongue Width: 0.31 in
• Pkg Qty: 100
• Outer Diameter: 0.31 in
• Overall Length: 0.71 in
• Width: 0.31 in
• Use With: CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
• Inner Diameter: 0.09 in.
• Insulation Material: Non-Insulated
• Rated Voltage: 2000V
• Lug Wire Size: 18-14 AWG
• Length: 0.71 in.
• Max. Temperature Rating: 650°F
