Panduit P14-10R-M Non-Insulated Ring Terminal #10 Stud

Product Description

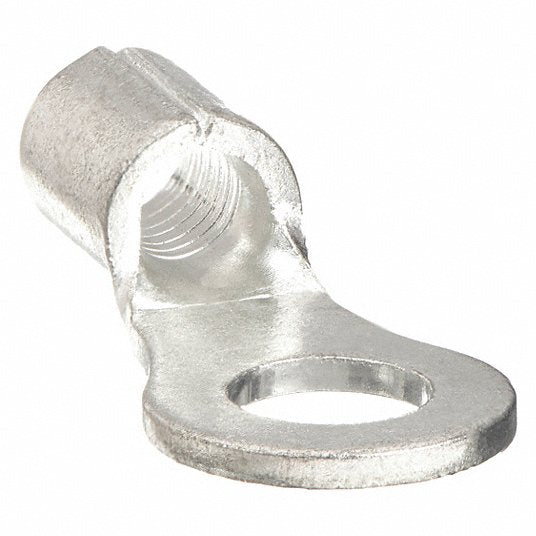

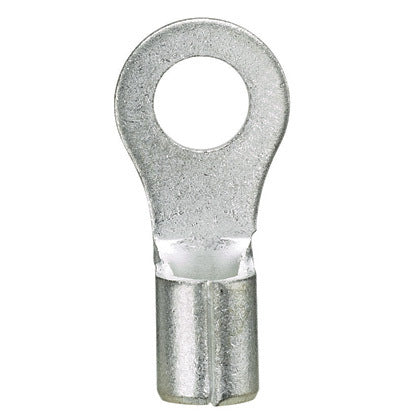

The PANDUIT P14-10R-M Pan-Term Terminal is a non-insulated, ring terminal. The brazed seam protects the terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. It is suitable for high-temperature applications.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process

Product Highlights

The PANDUIT P14-10R-M ring terminal ensures secure connections, prevents wire damage, and withstands high vibration environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-10R-M
• Country of Origin: MX - Mexico

Technical Specifications

• UNSPSC Code: 39121400
• Conductor Size: 14 AWG
• Conductor Type: Solid/Stranded
• Finish: Tin Plated
• Length: 0.71 in
• Material: Copper
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65|CT-100/CT-100A/CT-200/CT-570/CT-600-A/CT-1570/CT-2500/CT-160/CT-260|RoHS Compliant|UL 486A/486B
• Stud Size: #10
• Temperature Rating: 302 deg F
• Tongue Type: Ring
• Voltage Rating: 2000 V
• Wire Gauge: 14-18 AWG
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.310" (7.87mm)
• Brand: PANDUIT
• Maximum Temperature: 302 °F
• Maximum Voltage: 2,000 V
• Maximum Wire Size: 14 AWG
• Minimum Wire Size: 18 AWG
• Overall Length: 0.71 in
• Tongue Width: 0.31 in
• Seam Style: Brazed
• Terminal Shape: Ring
• Termination Style: Crimp
• Ring Thickness: 0.03 in
• Inner Diameter: 0.09 in.
• Outer Diameter: 0.16
• Rated Voltage: 2000V
• Lug Wire Size: 18-14 AWG
• MPN: P1410RM
• Connector Style: Ring
• Number of Ports: 1
