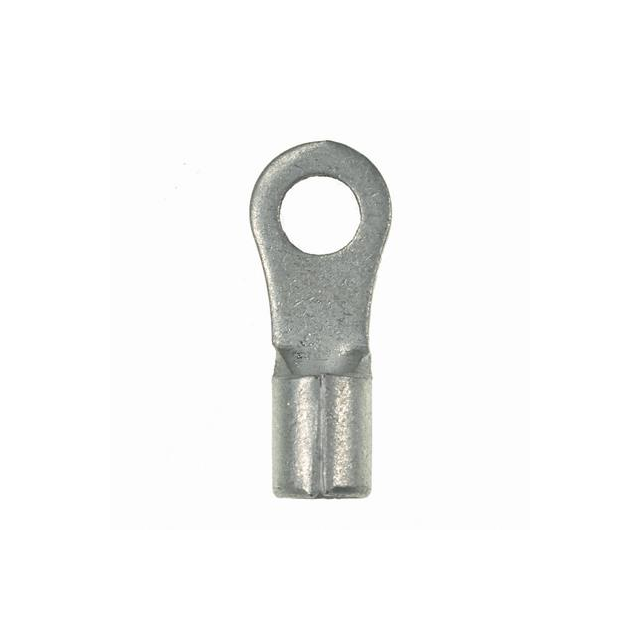

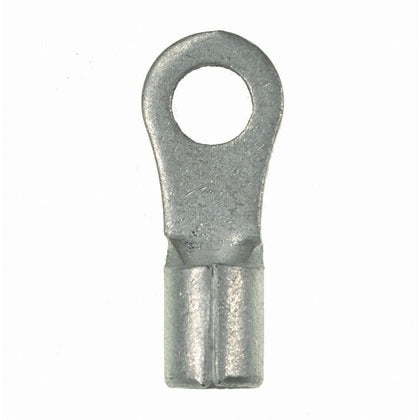

Panduit P12-6HDR-L Ring Heavy Duty Non-Insulated 16-12 AWG #6 Stud Pack 50 P126HDRL

Product Description

Panduit P12-6HDR-L is a heavy-duty, non-insulated ring terminal for 16 to 12 AWG solid or stranded conductors and a #6 stud. Made from copper with a tin-plated finish, the terminal has a brazed-seam barrel with internal serrations, a 0.31 in wide ring tongue and an overall length of 0.78 in. It is rated to 2000 V and 302 deg F for crimp termination in vibration-prone electrical connections.

• Fits 16–12 AWG conductors and mounts to a #6 stud; suitable for solid or stranded wire.
• Copper construction with tin plating; brazed-seam barrel and internal serrations for improved contact and tensile strength.
• Overall length 0.78 in, tongue 0.31 in W x 0.05 in THK, barrel 0.12 in ID x 0.22 in OD; rated 2000 V, 302 deg F.

Product Highlights

Heavy-duty non-insulated ring terminal, 16–12 AWG to #6 stud, tin-plated copper, brazed seam, 2000 V / 302 deg F, pack of 50.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P12-6HDR-L
• Country of Origin: Mexico
