Panduit P12-10HDR-L Ring HD Non-Insul 16-12AWG #10 PK50

Product Description

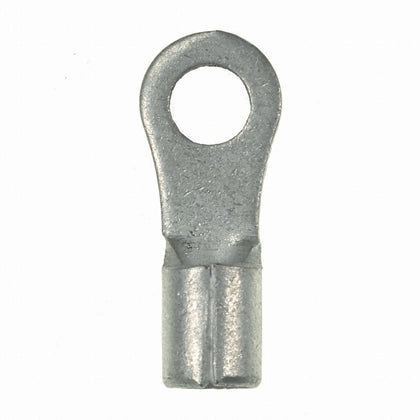

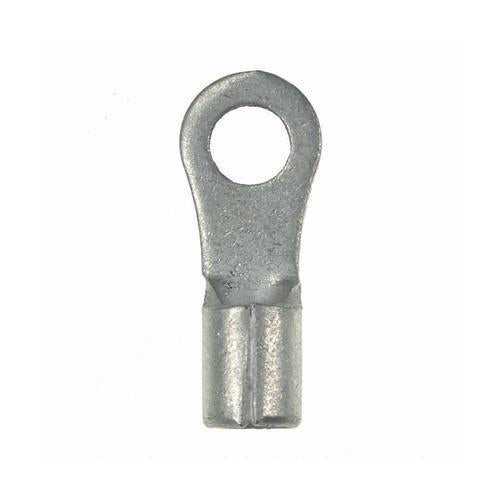

Panduit P12-10HDR-L is a heavy duty non-insulated ring terminal designed for solid and stranded conductors. This terminal accommodates conductor sizes from sixteen to twelve AWG and has a number ten stud size. The overall length is zero point eighty one inches, and it features a beveled edge with a brazed seam to enhance durability.

• Type: Heavy Duty Non-Insulated
• Voltage Rating: 2000 V
• Material: Copper, Tin Plated

Product Highlights

This ring terminal provides a reliable connection, especially in high vibration applications. Its design supports easy installation without compromising wire integrity.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: P12-10HDR-L

Technical Specifications

• Conductor Size: 16 to 12 AWG
• Stud Size: #10
• Length: 0.81 inches
• Barrel Size: 0.12 in ID x 0.22 in OD
• Tongue Size: 0.37 in W x 0.05 in THK
• Temperature Rating: 302 degrees Fahrenheit
• Clearance: 0.36 inches
