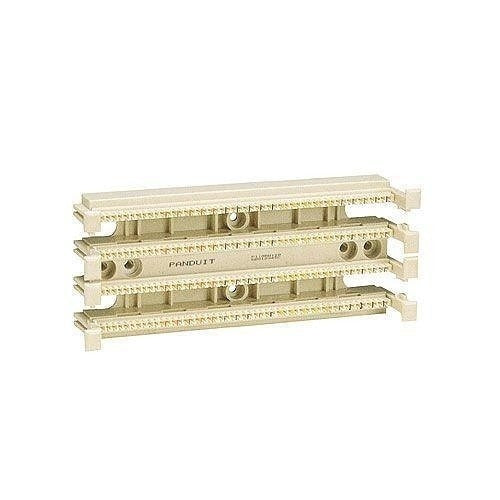

Panduit P110B100-X 110 Punchdown Base 100 Pair

Product Description

The PANDUIT P110B100-X is a 100-pair 110-style punchdown base designed for structured wiring installations in commercial and residential low-voltage cabling systems. This base serves as the mounting foundation for 110 wiring blocks, organizing and terminating horizontal or backbone copper cable runs. It accepts standard 110 connecting blocks and is installed by low-voltage technicians and network cabling contractors. The 100-pair capacity makes it well suited for mid-density voice and data distribution points in telecommunications rooms and intermediate distribution frames.

This punchdown base is used in structured cabling environments where 110-style termination is specified, including office buildings, schools, and data centers with legacy or hybrid copper infrastructure. It mounts to backboards or wall surfaces in telecom closets and IDF spaces, providing a stable, organized platform for high-pair-count terminations in both new construction and retrofit projects.

Key Features

• 100-pair capacity supports mid-density voice and data termination in a single base
• 110-style punchdown format compatible with standard 110 connecting blocks
• Designed for wall or backboard mounting in structured cabling environments
• Single unit per package for straightforward procurement and installation

Compatibility

Designed as an OEM-style replacement and standard component for 110-style structured cabling systems using punchdown termination in low-voltage voice and data installations.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician in accordance with TIA-568 structured cabling standards. De-energize any active circuits before terminating conductors into the block. A 110-style punchdown tool is required for proper conductor seating and insulation displacement. Secure the base firmly to a backboard or mounting surface before loading connecting blocks to prevent movement during termination.
