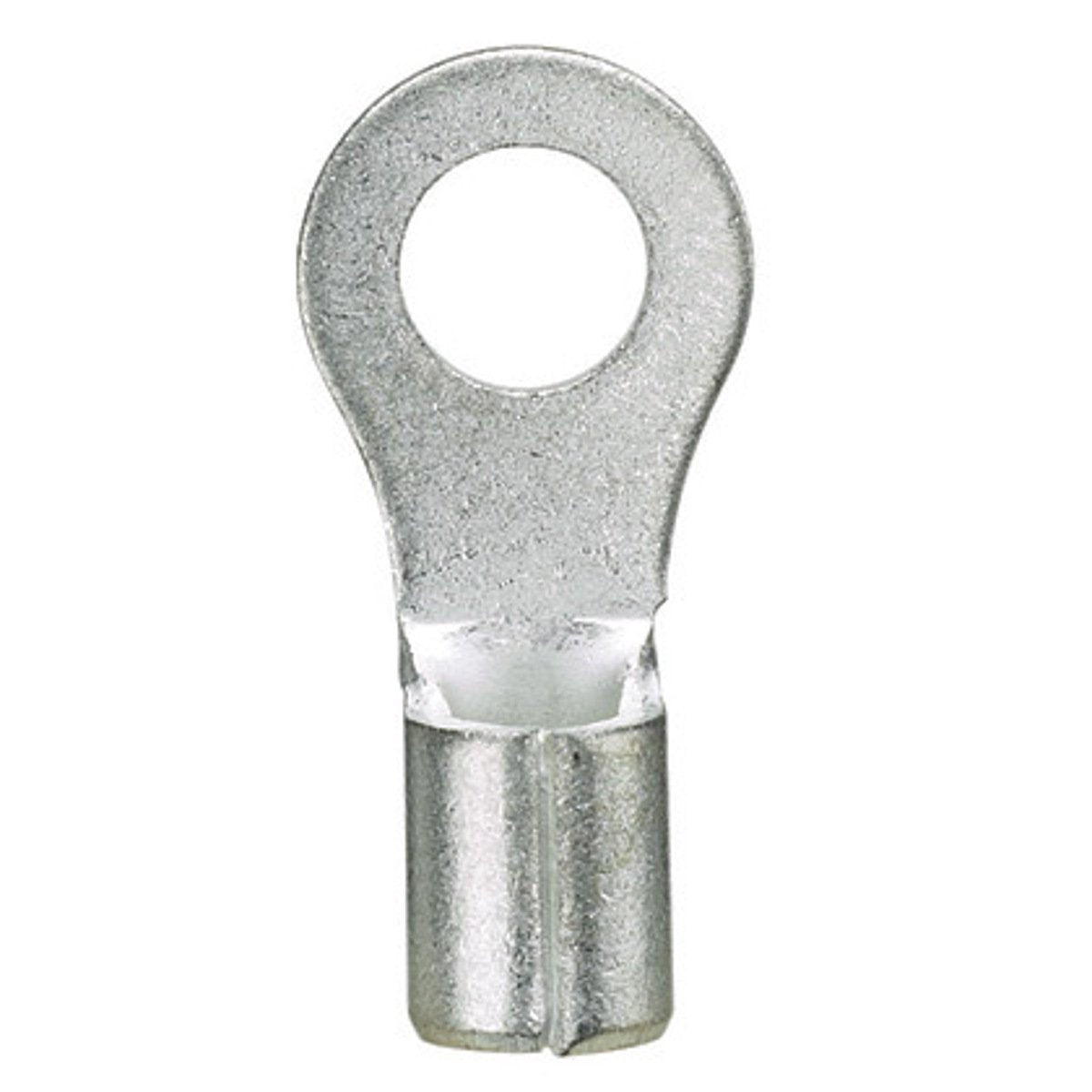

Panduit P10-8R-L Pan-Term Ring Terminal #8

Product Description

The PANDUIT P10-8R-L Pan-Term Ring Terminal is a non-insulated ring terminal designed for secure connections. Suitable for 10-12 AWG wires and #8 stud size. The ring tongue design ensures a reliable connection, even in high-vibration environments. Internal barrel serrations enhance wire contact and tensile strength.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL listed 587H E52164; CSA certified LR31212 standards

Product Highlights

Non-insulated ring terminal for 10-12 AWG wires, featuring a ring tongue design and internal barrel serrations for secure connections.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P10-8R-L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: P10-8R-L
• Manufacturer: Panduit Corp
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Connection: Standard
• Enclosure: Ring shape
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: UL Listed 587H E52164, CSA Certified LR31212
• UPC: 074983802302
• GTIN: 00074983802302
• Item Type: Ring Terminal
• Size: #8
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Voltage Rating: 2000
• Wire Size: 10-12 AWG
• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.780" (19.81mm)
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Packaging: Bulk
• Part Status: Active
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 8 Stud
• Contact Material: Copper
• Thickness: 0.040" (1.02mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.310" (7.87mm)
• Base Product Number: P10
• Stud Size - Metric: M4
• Stud Size - Imperial: #8
• Wire Size AWG Max: 10AWG
• Conductor Area CSA: 6mm
• Product Range: P Series
• Insulator Colour: -
• Insulator Material: Uninsulated
• SVHC: No SVHC (04-Feb-2026)
