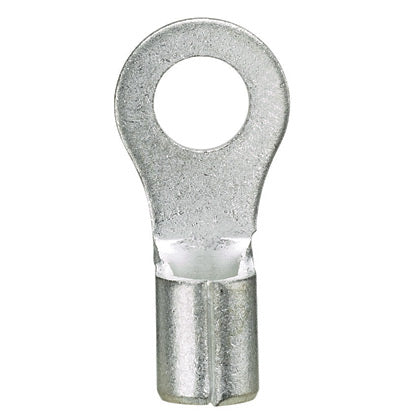

Panduit P10-6R-L Ring Terminal 10-12AWG #6

Product Description

The PANDUIT P10-6R-L is a ring terminal connector designed for 10-12 AWG wire with a #6 stud size. This non-insulated Pan-Term® ring terminal ensures a secure and reliable connection. It is suitable for various applications requiring a durable and high-quality termination solution.

• Brazed Seam
• Serrated Termination
• Non-Insulated

Product Highlights

Provides a secure and reliable connection for 10-12 AWG wire with a #6 stud size.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P10-6R-L
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.780" (19.81mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Packaging: Bulk
• Wire Gauge: 10-12 AWG
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 6 Stud
• Contact Material: Copper
• Thickness: 0.040" (1.02mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.310" (7.87mm)
• Base Product Number: P10
• Brand: Pan-Term
• Finish: Tin-Plated
• Standard: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-165)
• Use With: CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
• Conductor Size: 14-10 AWG
• Stud Size: #6
• Lug Wire Size: 14-10 AWG
• Length: 0.78 in.
• Width: 0.31 in.
• Max. Temperature Rating: 302 F
