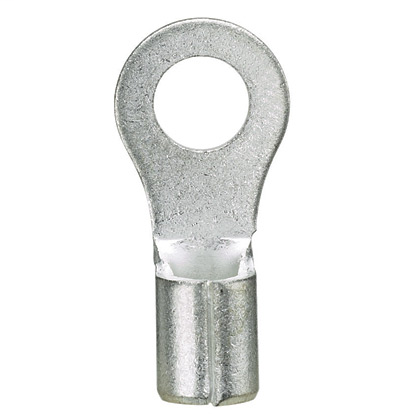

Panduit P10-6R-D Ring Terminal 14-10 AWG #6 Stud

Brand: PANDUIT
SKU: P10-6R-D
Availability: Out Of Stock
$145.38
$145.38
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PANDUIT P10-6R-D ring terminal is designed for secure electrical connections. Suitable for 14-10 AWG wires and featuring a #6 stud size, this non-insulated terminal ensures efficient attachment. Constructed from high-quality copper with a tin-plated finish, it offers reliable performance in various applications. It has a maximum operating temperature of 150°C and a voltage rating of 2000V.

  • Designed for 14-10 AWG wires
  • #6 stud size
  • Constructed from high-quality copper

Product Highlights

Durable ring terminal ensures a secure and efficient electrical connection for various wiring projects.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P10-6R-D
  • Country of Origin: MX - Mexico
Technical Specifications
Manufacturer
Panduit
Wire Gauge
12-10 AWG
Terminal Type
Pan-Term
Stud Size
6
Length-Overall
0.780" (19.81mm)
Width
0.310" (7.87mm)
Insulation
Non-Insulated
Packaging
Bulk
Part Status
Active
Category
Connectors, Interconnects
Terminals
Ring Connectors
Mounting Type
Free Hanging (In-Line)
Series
Pan-Term
Termination
Crimp
Features
Brazed Seam, Serrated Termination
Stud/Tab Size
6 Stud
Contact Material
Copper
Thickness
0.040" (1.02mm)
Contact Finish
Tin
Width - Outer Edges
0.310" (7.87mm)
Base Product Number
P10
Product Category
Products
Connectors
Crimp Terminals, Housings, Splices, & Lugs
Crimp Terminals, Housings, & Splices
Crimp Ring, Spade, Fork & Hook Terminals
Manufacturer Part Number
Panduit P10-6R-D
Maximum Operating Temperature
150 °C, 302 °F
Voltage
2000 V, 2 kV
Outside Diameter
.31 in, .3 mm
Material
Copper
Barrel Length
.31 in, 7.9 mm
Barrel Type
Beveled
Finish
Tin Plated
Product Type
Ring Terminal
Part Aliases
MS20659-165
SKU
PANP10-6R-D
ECCN
EAR99
Brand
Pan-Term
Standard
UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-165)
Use With
CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
Color
Metallic
Conductor Size
14-10 AWG
Inner Diameter
0.13 in.
Outer Diameter
0.22
Rated Voltage
2000V
Lug Wire Size
14-10 AWG
Color Family
Metallic
Length
0.78 in.
Max. Temperature Rating
302°F
