Panduit P10-56R-L Pan Ring Term Non-Ins 12-10Awg 5/16In Stud

Product Description

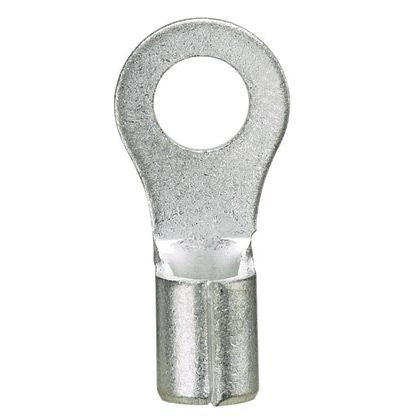

The Panduit P10-56R-L Pan-Term™ ring terminal is a non-insulated terminal designed for solid or stranded conductors. It accommodates 10-12 AWG wire and has a 5/16 in stud size. The ring tongue design ensures a secure connection, while internal barrel serrations assure good wire contact and maximum tensile strength.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Insulation support helps to prevent wire damage in bending applications

Product Highlights

Non-insulated ring terminal with brazed seam and serrated termination for secure connections.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P10-56R-L
• Country of Origin: Mexico

Technical Specifications

• Barrel Size: 0.13 in ID x 0.22 in OD
• Conductor Size: 10 AWG
• Conductor Type: Solid/Stranded
• Finish: Tin Plated
• Length: 0.96 in
• Manufacturer Part Number: P10-56R-L
• Material: Copper
• Specifications: 0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65|CSA File No. LR31212|RoHS Compliant|UL 486A/486B/587H File No. E52164
• Stud Size: 5/16 in
• Temperature Rating: 302 deg F
• Tongue Size: 0.52 in W x 0.04 in THK
• Tongue Type: Ring
• Type: Type P-R Non-Insulated
• Voltage Rating: 2000 V
• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.950" (24.13mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term ®
• Termination: Crimp
• Packaging: Bulk
• Wire Gauge: 10-12 AWG
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Contact Material: Copper
• Thickness: 0.040" (1.02mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.520" (13.21mm)
• Base Product Number: P10
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UPC: 07498380236
• UNSPSC: 39121409
• Brand: Pan-Term ®
• Use With: CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
• Inner Diameter: 0.13 in.
• Outer Diameter: 0.22
• Rated Voltage: 2000V
• Lug Wire Size: 14-10 AWG
• Width: 0.52 in.
• Max. Temperature Rating: 302°F
