Panduit P10-14R-L Ring Terminal 10-14 AWG 1/4 inches Stud

Brand: PANDUIT
SKU: P10-14R-L
Availability: In Stock

Ships same day if ordered by 12 pm
$45.98
$45.98
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

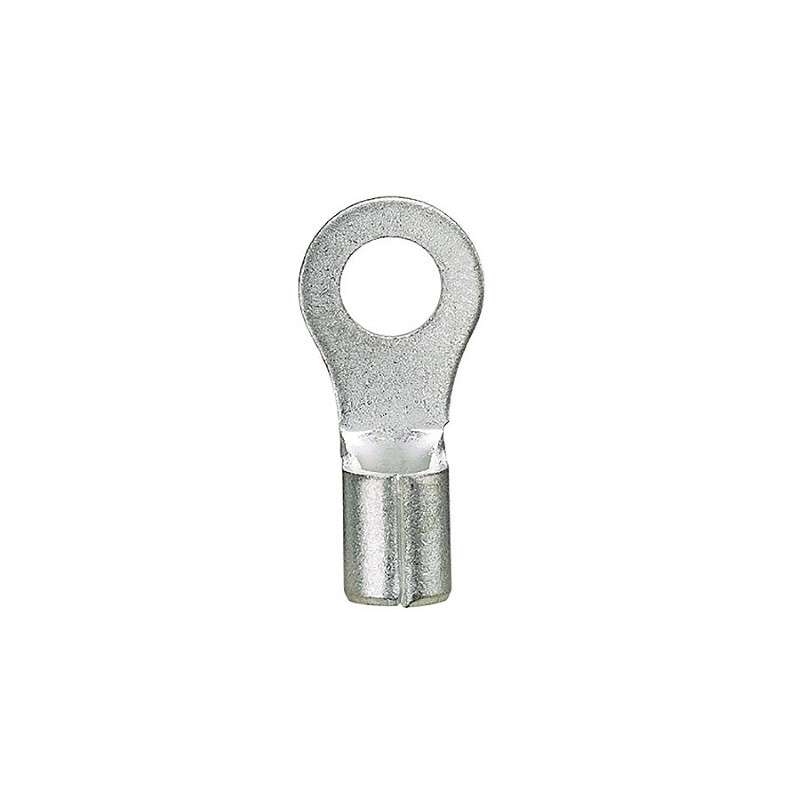

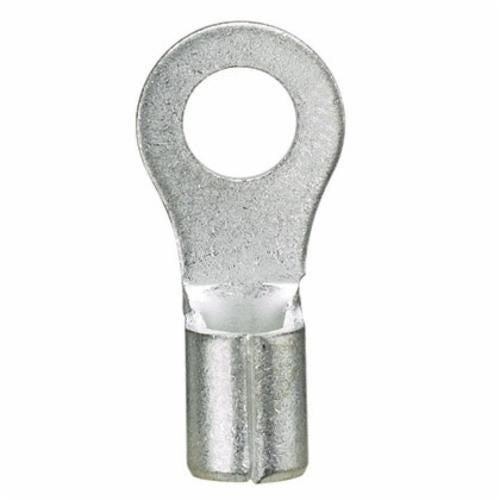

The Panduit P10-14R-L Pan-Term Terminal is a non-insulated ring terminal with a 1/4" stud size, designed for 10-14 AWG wire. The brazed seam protects the terminal barrel from splitting during crimping, while internal barrel serrations ensure good wire contact and maximum tensile strength.

  • Non-insulated ring terminal for 14 to 10 AWG wire with 1/4 stud size.
  • Brazed seam protects terminal barrel from splitting during the crimp process.
  • Internal barrel serrations assure good wire contact and maximum tensile strength.

Product Highlights

Non-insulated ring terminal with brazed seam and internal serrations for secure wire connections.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P10-14R-L
  • Country of Origin: Mexico
Technical Specifications
ECCN
EAR99
Country of Origin
MX - Mexico
UPC
07498380234
UNSPSC
39121409
Brand
Pan-Term
Finish
Tin-Plated
Packaging
50 Per Package
Standard
UL Listed 587H E52164, CSA Certified LR31212
Material
Copper
Use With
CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
Conductor Size
14-10 AWG
Inner Diameter
0.13 in.
Insulation Material
Non-Insulated
Outer Diameter
0.22
Rated Voltage
2000V
Stud Size
1/4 in.
Lug Wire Size
14-10 AWG
Length
0.96 in.
Width
0.52 in.
Max. Temperature Rating
302°F
Category
Connectors, Interconnects
Terminals
Ring Connectors
Length - Overall
0.960" (24.38mm)
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Series
Pan-Term
Termination
Crimp
Wire Gauge
10-14 AWG
Part Status
Active
Insulation
Non-Insulated
Terminal Type
Circular
Features
Brazed Seam, Serrated Termination
Contact Material
Copper
Thickness
0.040" (1.02mm)
Contact Finish
Tin
Width - Outer Edges
0.520" (13.21mm)
Base Product Number
P10
Specifications
9/32 in Wire Strip Length, 0.38 in Clearance
Temperature Rating
302 deg F
Tongue Size
0.52 in W x 0.04 in T
Tongue Type
Ring
Type
Non-Insulated
Voltage Rating
2000 V
Standard & Approvals
C22.2 No. 65 CSA Certified, RoHS Compliant, UL486A-486B Listed
Barrel Size
0.13 in ID x 0.22 in OD
Barrel Type
Brazed Seam
Color
Metallic
Conductor Type
Solid/Stranded
Harmonized Code
8535.90.8020
