Panduit P10-10R-L Pan-Term Ring Terminal, Bare, 10-14 AWG, #10 Stud, 50PCS

Brand: PANDUIT
SKU: P10-10R-L
Availability: In Stock

Ships same day if ordered by 12 pm
$40.01
$40.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

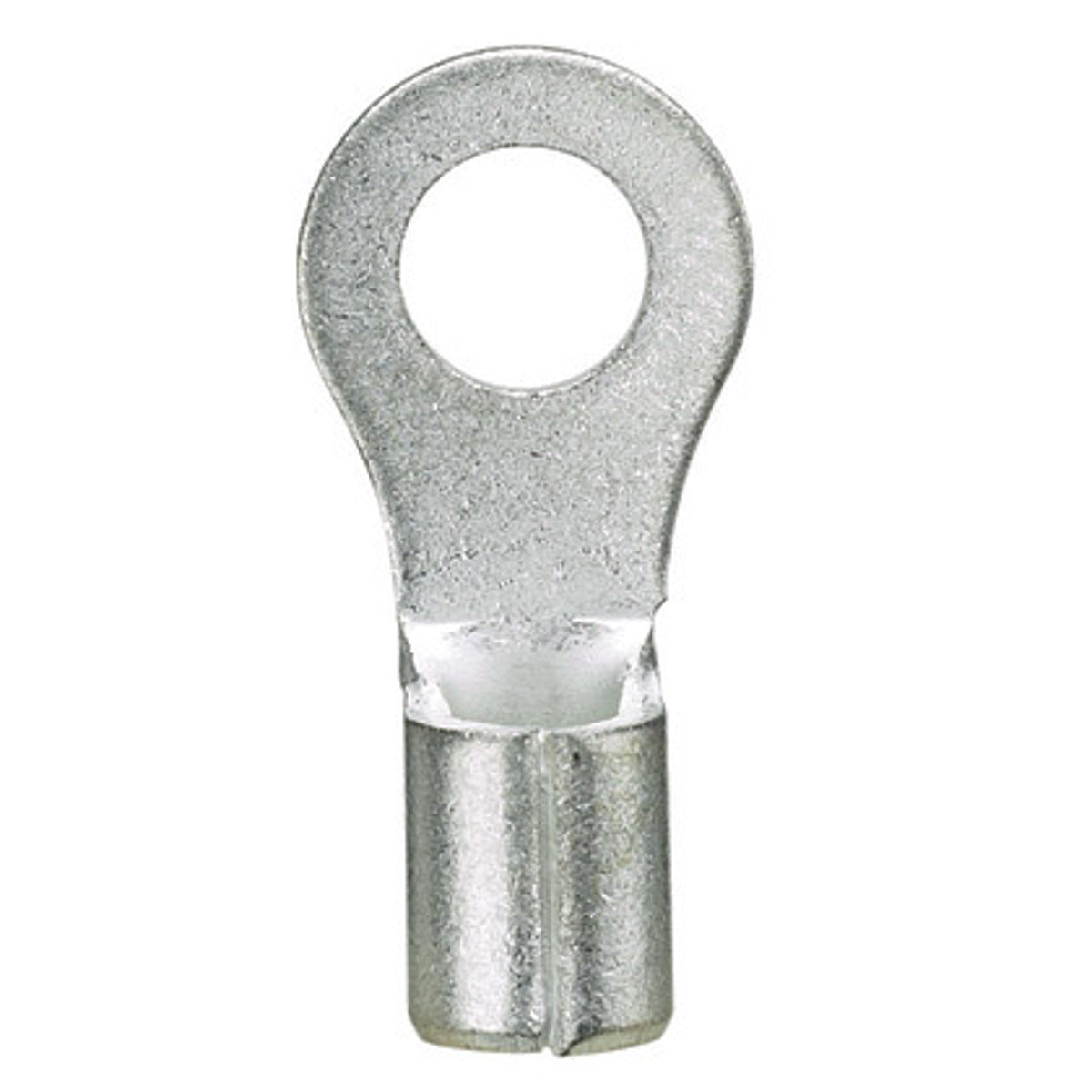

The PANDUIT P10-10R-L Pan-Term Terminal is a non-insulated ring terminal. The brazed seam protects the terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. It is designed for 10-14 AWG wires and a #10 stud size.

  • Non-insulated ring terminal

  • Brazed seam protects terminal barrel from splitting during the crimp process

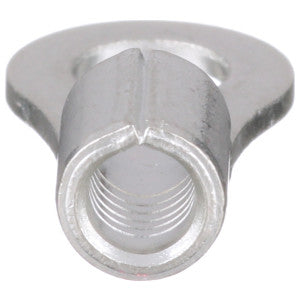

  • Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

The PANDUIT P10-10R-L ring terminal ensures secure and efficient electrical installations with reliable conductivity.

Product Information

Standard Information

  • Brand: PANDUIT

  • Manufacturer Part Number: P10-10R-L

  • Country of Origin: Mexico

Technical Specifications
Catalog Number
P10-10R-L

Manufacturer
Panduit

Brand
Panduit

Sub Brand
Pan-Term

Country of Origin
Mexico

Made in USA
No

Connection
Standard

Enclosure
Ring shape

Finish
Tin-Plated

Insulation
Non-Insulated

Material
Copper

Standard
UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-105)

UPC
074983802326

GTIN
00074983802326

Item Type
Ring Terminal

Size
#10

Temperature Rating
302 Degrees Fahrenheit (150 Degrees Celsius)

Voltage Rating
2000

Wire Size
#10 AWG

IGCC
4543

Type
Ring Terminal

Mounting Type
Free Hanging (In-Line)

Series
Pan-Term

Termination
Crimp

Packaging
Bulk

Wire Gauge
10-14 AWG

Part Status
Active

Terminal Type
Circular

Features
Brazed Seam, Serrated Termination

Stud/Tab Size
10 Stud

Contact Material
Copper

Thickness
0.040" (1.02mm)

Contact Finish
Tin

Width - Outer Edges
0.380" (9.65mm)

Base Product Number
P10

ECCN
EAR99

UNSPSC
39121409

Use With
CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)

Conductor Size
14-10 AWG

Inner Diameter
0.13 in.

Insulation Material
Non-Insulated

Outer Diameter
0.22

Rated Voltage
2000V

Stud Size
#10

Lug Wire Size
14-10 AWG

Length
0.81 in.

Width
0.38 in.

Max. Temperature Rating
302 F

Maximum Operating Temperature
150 C, 302 F

Voltage
2000 V, 2 kV

Outside Diameter
.38 in, 9.6 mm

Barrel Length
.31 in, 7.9 mm

Barrel Type
Beveled

Product Type
Ring Terminal

Part Aliases
MS20659-105

Quantity:
50 pieces
