Product Description

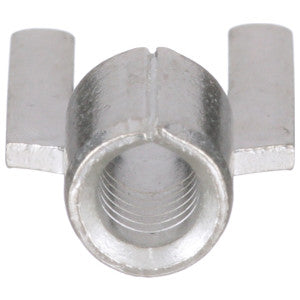

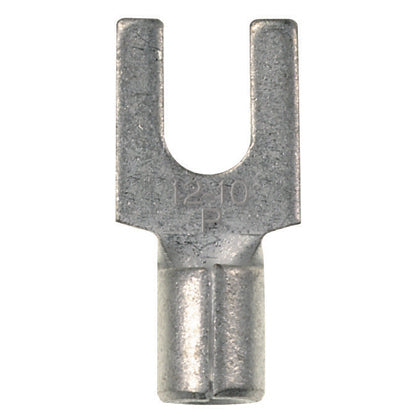

The PANDUIT P10-10F-L is a non-insulated fork terminal designed for 12-10 AWG wires and a NO.10 stud size. Constructed from copper with a tin-plated finish, this terminal ensures a secure and reliable connection. It is suitable for various electrical applications requiring a durable and high-quality termination solution.
- Non-insulated fork terminal
- Designed for 12-10 AWG wires
- UL Listed 587H E52164; CSA Certified LR31212
Product Highlights
The PANDUIT P10-10F-L provides a reliable connection for electrical applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: P10-10F-L
-
Country of Origin: Mexico
Technical Specifications
-
IGCC: 4543
-
Size: NO.10
-
Type: Fork Terminal
-
Color: Metallic
-
Finish: Tin-Plated
-
Material: Copper
-
Standard: UL Listed 587H E52164; CSA Certified LR31212
-
Enclosure: Fork shape
-
Wire Size: NO.10 AWG
-
Connection: Standard
-
Insulation: Non-Insulated
-
Family group: CONNECTORS
-
Manufacturer: PANDUIT
-
Voltage Rating: 2000 V
-
Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
-
Category: Connectors, Interconnects
-
Terminals: Spade Connectors
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Crimp
-
Series: Pan-Term
®
-
Wire Gauge: 10-12 AWG
-
Packaging: Bulk
-
Features: Brazed Seam, Serrated Termination
-
Terminal Type: Standard
-
Contact Finish: Tin
-
Stud/Tab Size: 10 Stud
-
Contact Material: Copper
-
Width - Outer Edges: 0.370" (9.40mm)
-
Tongue Inside Opening: 0.200" (5.08mm)
-
Length - Overall: 0.780" (19.81mm)
-
Base Product Number: P10
-
RoHS Status: ROHS3 Compliant
-
ECCN: EAR99
-
Moisture Sensitivity Level (MSL): Not Applicable
-
HTSUS: 8536.90.4000
-
REACH Status: REACH Unaffected
-
Country of Origin: MX - Mexico
-
UPC: 07498380520
-
UNSPSC: 39121409
-
Brand: Pan-Term
®
-
Use With: CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
-
Conductor Size: 12-10 AWG
-
Inner Diameter: 0.13 in.
-
Insulation Material: Non-Insulated
-
Outer Diameter: 0.22
-
Rated Voltage: 2000V
-
Stud Size: #10
-
Lug Wire Size: 12-10 AWG
-
Color Family: Metallic
-
Length: 0.78 in.
-
Width: 0.37 in.
-
Max. Temperature Rating: 302
°F
