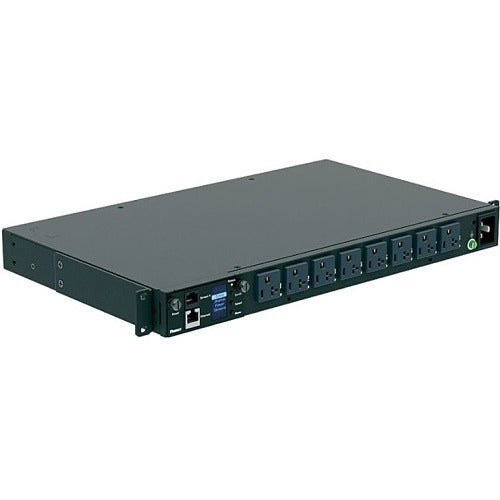

Panduit P08E14M Metered Pdu 15A 8-outlet Nema 5-20R

Product Description

The PANDUIT P08E14M is a metered power distribution unit (PDU) designed for structured power management in rack-mount environments. Rated at 15 amps, it provides eight NEMA 5-20R receptacles, giving technicians a dedicated, monitored power source for servers, networking gear, and other rack-mounted equipment. The metered design allows real-time load monitoring so electrical and data center technicians can track power consumption and avoid circuit overload. This unit is sold individually and is appropriate for professional installation in commercial and enterprise settings.

The P08E14M is suited for data centers, server rooms, telecommunications closets, and structured cabling installations where reliable, distributed AC power is required at the rack level. The eight-outlet configuration supports high-density equipment loads under a single 15-amp branch circuit. It is typically installed by licensed electricians or qualified data center infrastructure technicians following applicable NEC guidelines for branch circuit loading and rack power management.

Key Features

• 15-amp total rated capacity with metered load monitoring
• Eight NEMA 5-20R receptacles for broad device compatibility
• Rack-mount form factor for organized, space-efficient power distribution
• Metered design supports real-time current draw visibility
• Sold as individual unit (each)

Compatibility

Designed as a rack-mount metered PDU for use with standard 15-amp branch circuits feeding NEMA 5-20 receptacle-compatible equipment in data center and telecommunications rack enclosures.

Installation Notes

Installation should be performed by a licensed electrician or qualified data center technician in compliance with applicable NEC requirements for branch circuit loading. De-energize the branch circuit at the breaker panel before making any connections to the unit. Verify that the total connected load does not exceed 80 percent of the 15-amp rated capacity under continuous-use conditions, as required by NEC continuous-load provisions. Secure the unit properly within the rack enclosure before restoring power.
