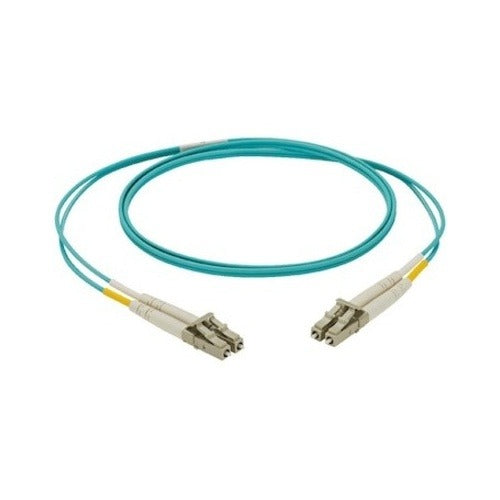

Panduit NKFPZ22RLLSM010 2-fiber OM4 Fiber Optic Patch Cord

Product Description

The PANDUIT NKFPZ22RLLSM010 is a 2-fiber OM4 multimode fiber optic patch cord designed for structured cabling installations in commercial and enterprise environments. Built with a 2.0mm riser-rated jacket, this assembly meets riser (CMR) plenum code requirements for vertical cable runs between floors. OM4 multimode glass supports high-bandwidth applications including 40G and 100G Ethernet over short distances. Licensed electricians and low-voltage cabling technicians are the primary installers of this type of assembly.

This patch cord is suited for use in data centers, telecommunications rooms, and riser pathway installations where a compact 2-fiber assembly is required. The riser-rated jacket makes it appropriate for vertical shaft and inter-floor runs in commercial buildings. It ships as a single unit and is intended for structured cabling systems using OM4 multimode infrastructure.

Key Features

• OM4 multimode fiber supports high-bandwidth 40G and 100G short-reach applications
• 2.0mm riser-rated (CMR) jacket rated for vertical cable runs between building floors
• 2-fiber configuration in a compact form factor
• Single-unit packaging for precise quantity management on the job

Compatibility

Designed as an OEM-style patch cord for use with OM4 multimode fiber optic structured cabling systems utilizing compatible LC or riser-rated fiber termination panels.

Installation Notes

Installation should be performed by a licensed low-voltage cabling technician familiar with TIA-568 structured cabling standards. Do not exceed the minimum bend radius of the cable during routing or termination. Verify that all connected fiber ports are powered down or that appropriate laser safety precautions are in place before handling fiber ends. Inspect ferrules and clean fiber end faces before mating to avoid insertion loss.
