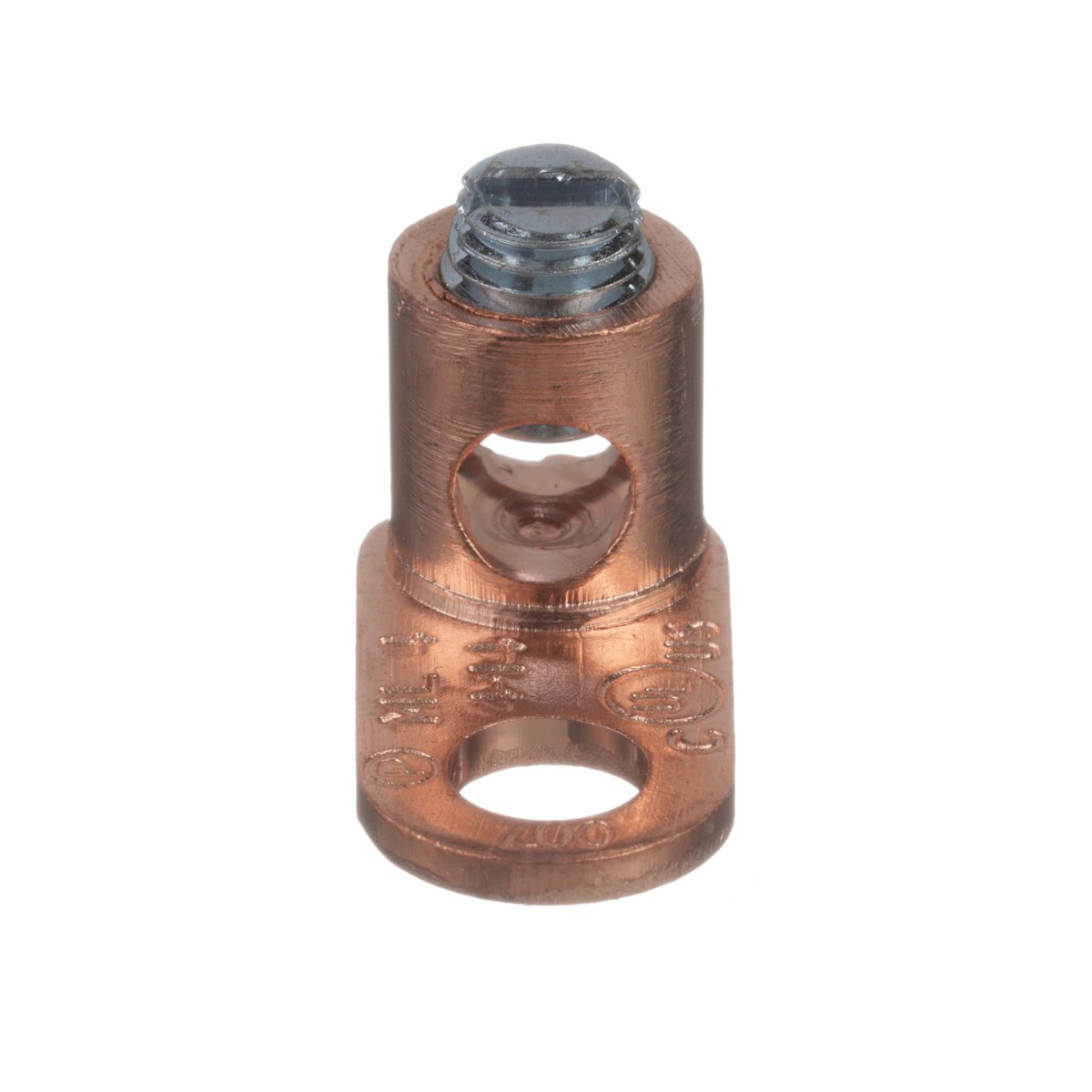

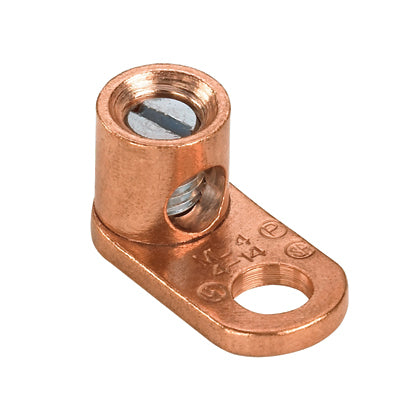

Panduit ML4-CY Copper Mechanical Lug

Product Description

Panduit ML4-CY is a cast copper mechanical lug designed for use with solid and stranded copper conductors. It is a single barrel, one-hole connector capable of accommodating a wire range from fourteen AWG to four AWG. This lug offers a secure electrical connection and is suitable for various applications requiring high performance.

• Steel set screw for strong electrical contact.
• Inspection window for ensuring proper conductor insertion.
• UL Listed, rated for up to six hundred volts and ninety degrees Celsius.

Product Highlights

Compact design allows for space efficiency while minimizing inventory needs. The inspection window ensures complete control during installation and enhances reliability.

Product Information

Standard Information

• Brand: Panduit
• MPN: ML4-CY

Technical Specifications

• Gauge: 14 AWG
• Material: Copper
• Bolt Hole: 1/4 inch
• Voltage Rating: 600 V
• Number of Holes: 1
• Temperature Rating: 90° C
