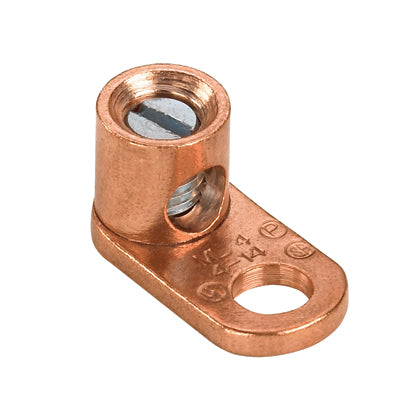

Panduit ML1/0-LY Copper Mechanical Lug 600V 14 to 1/0 AWG 1 Barrel

Product Description

The Panduit Mechanical Lug ML1/0-LY is a one-hole copper lug. It is designed for a wide range of wire sizes from fourteen to one-aught AWG. This lug is constructed from high-strength electrolytic copper, ensuring strong electrical and mechanical performance for various applications. The plated steel set screw creates a reliable electrical connection between the conductor and the lug. Additionally, the internal pressure bar and V-bottom collar provide an even clamping force, securing a solid contact.

• Wire range: 14 to 1/0 AWG
• Type: Mechanical lug with one bolt hole
• Voltage rating: 600 VAC

Product Highlights

This mechanical lug is ideal for copper code conductors and features a compact design that saves space in wiring applications.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: ML1/0-LY

Technical Specifications

• Material: Cast copper
• Stud Size: 5/16 in
• Dimensions: 1.57 in L x 0.73 in W x 0.79 in H
• Tongue Size: 0.8 in L x 0.73 in W x 0.09 in THK
• Tongue Type: Straight
• Number of Bolt Holes: 1
• Temperature Rating: 90 deg C
• Standards/Approvals: cULus Listed, ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Voltage Rating: 600 VAC
