Panduit MC75X100IG2 PAN NAR METRIC DCT PVC 75MMX100MMX2M LG 2MT

Product Description

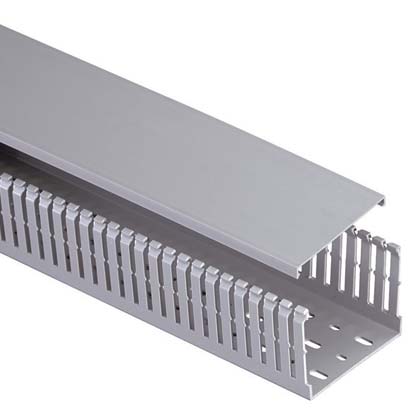

Panduit MC75X100IG2 is a wiring duct made from PVC, available in the size seventy-five millimeters by one hundred millimeters and two meters in length. This product features a narrow finger design that effectively accommodates high-density terminal blocks, making it suitable for various electrical applications.

• Adhesive backed for secure installation.
• CE marked, facilitating compliance with European standards.
• Includes both base and cover.

Product Highlights

This narrow slot wiring duct is designed for indoor applications where organization and protection of electrical wiring is essential.

Product Information

Standard Information

• Manufacturer: Panduit
• Manufacturer Part Number: MC75X100IG2

Technical Specifications

• Type: Type MC Metric
• Color: International Gray
• Width: 2.94 inches
• Depth: 3.85 inches
• Length: 2 meters
• Material: PVC
• Slot Size: 0.2 inches
• Slot Type: Narrow Slot
• Mounting Type: DIN Rail/Hole
• Application: Indoor Applications
• Adhesive Backed: Yes
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CE 2006/95/EC, CSA C22.2 File No. 18.5-13, DIN 43659, EN 50085-1/50085-2-3, IEC 60332-1, NFPA 79, RoHS Compliant, UL Listed, UL 94/1565
