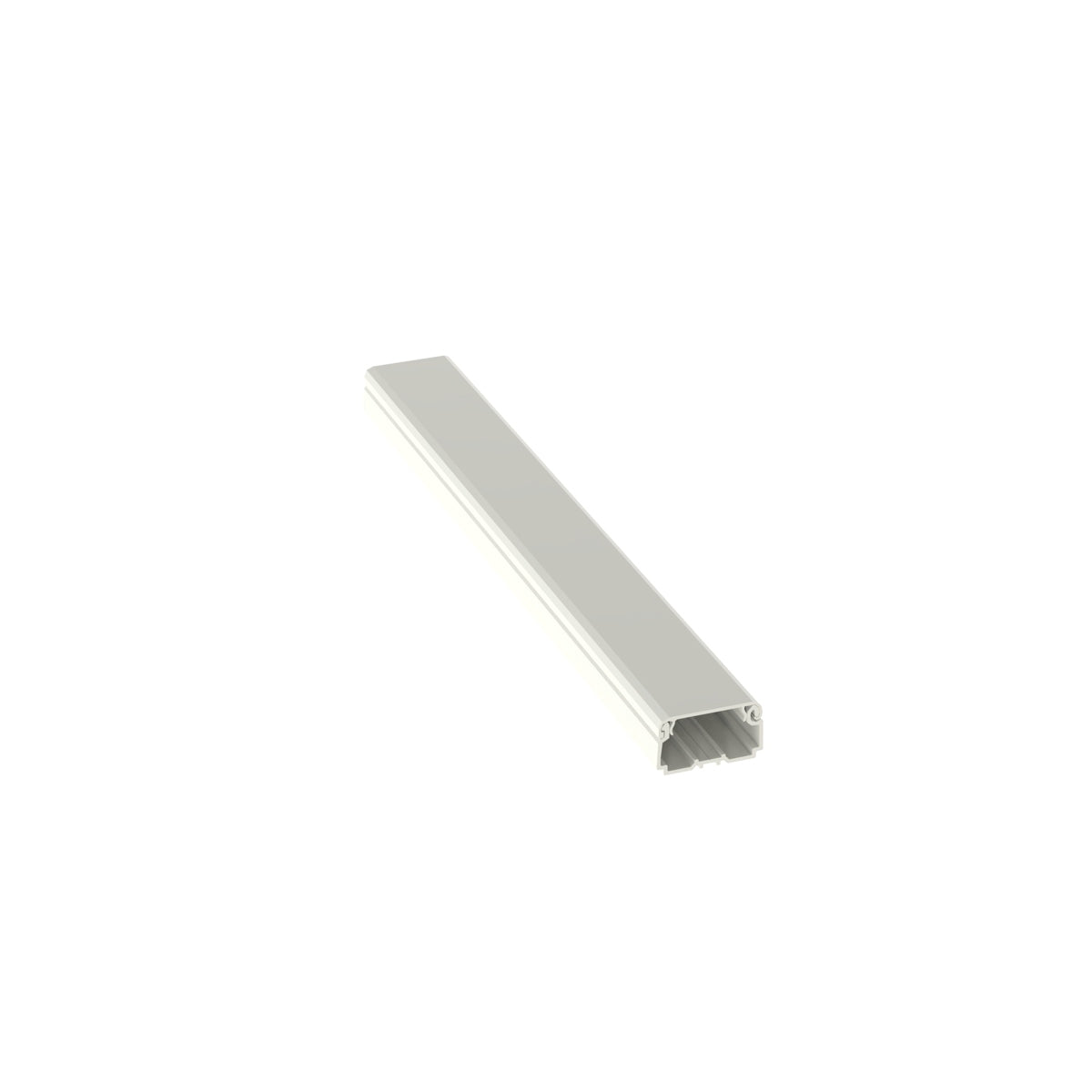

Panduit LDPH10IW8-A Surface Raceway, 600 V, 8 ft, Off-White

Product Description

The Panduit LDPH10IW8-A is a power rated surface raceway designed for applications up to 600 Volts. This two-piece latching raceway features a cover, making it suitable for low voltage cable routing along walls and ceilings. It measures eight feet in length, one point five two inches in width, and zero point eight six inches in depth.

• Pre-punched mounting holes for quick installation
• Factory-applied adhesive backing for easy mounting
• Adhesive-backed cover provides secure access

Product Highlights

The LDPH10 surface raceway is compliant with TIA/EIA standards, UL listed, and made from rigid PVC. This product is ideal for schools, hospitals, and offices, providing a clean and efficient way to route cables while maintaining safety.

Product Information

Standard Information

• Catalog Number: LDPH10IW8-A
• Manufacturer: Panduit

Technical Specifications

• Length: 96 inches
• Width: 1.52 inches
• Height: 0.86 inches
• Material: Rigid PVC
• Voltage Rating: 600 VAC
• Temperature Rating: 0 to 50 degrees Celsius
• Cover Type: Hinged
• Country of Origin: United States
