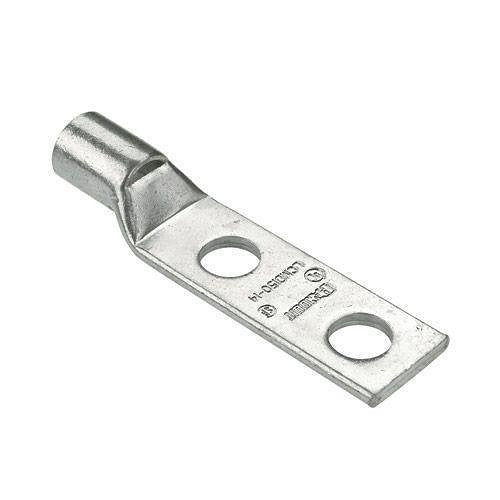

Panduit LCMD120-10CD-X Copper Compression Metric Lug

Product Description

The PANDUIT LCMD120-10CD-X is a copper compression metric lug designed for making secure, low-resistance electrical terminations. Compression lugs are crimped onto conductor ends using a compatible compression tool, creating a gas-tight connection that resists vibration, corrosion, and loosening over time. This lug is sized to metric conductor specifications and is installed by licensed electricians working on power distribution, grounding, and equipment termination applications where reliable mechanical and electrical continuity is required.

Copper compression metric lugs like the LCMD120-10CD-X are used in commercial and industrial electrical installations where metric-sized conductors are specified. Typical applications include motor terminations, switchgear connections, panel grounding, and equipment bonding. The metric sizing makes this lug appropriate for projects using internationally sourced conductors or equipment with metric terminal requirements.

Key Features

• Copper construction provides excellent electrical conductivity and corrosion resistance
• Compression-style termination creates a gas-tight, vibration-resistant crimp connection
• Metric conductor sizing for compatibility with internationally specified wiring systems
• Designed for use with standard compression tooling compatible with PANDUIT die sets
• Sold individually, allowing precise quantity purchasing for job-specific needs

Compatibility

Designed as an OEM-style compression lug for use with metric-sized copper conductors in commercial and industrial electrical termination applications. Consult PANDUIT tooling compatibility guides to confirm correct die selection for this lug series.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and verify zero voltage with a calibrated meter before beginning any termination work. Use only a compression tool and die set rated and sized for this lug to achieve a proper crimp. Inspect the finished crimp for correct seating and mechanical integrity before energizing the circuit.
