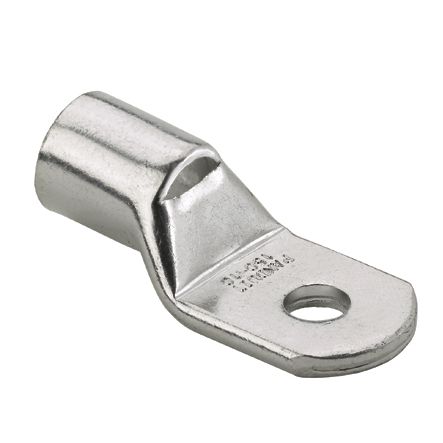

Panduit LCMA70-10-L Terminal Copper Compression Metric Lug

Product Description

The Panduit LCMA70-10-L is a terminal copper compression metric lug with one hole for 70mm wire and an M10 stud. These lugs feature a standard barrel with window lugs for visual assurance of full conductor insertion. The rounded tongue allows usage in tight spaces, and the internal bevel wire entry promotes fast and easy installation.

• Standard barrel with window lugs
• Visual assurance of full conductor insertion
• Rounded tongue allows usage in tight spaces
• Tin-plated to inhibit corrosion

Product Highlights

Tin-plated to inhibit corrosion, these metric lugs are RoHS-compliant, UL-listed, UL-recognized and CSA-certified.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCMA70-10-L

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 2.106" (53.50mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Lug
• Termination: Crimp
• Wire Gauge: 70mm
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Flat Sided, Tubular (Battery Lugs)
• Contact Material: Copper
• Stud/Tab Size: M10 Stud
• Contact Finish: Tin
• Thickness: 0.112" (2.85mm)
• Base Product Number: LCMA
• Width - Outer Edges: 0.819" (20.80mm)
