Panduit LCMA50-12-L Compression Connector Metric Lug 50mm M12 Stud

Product Description

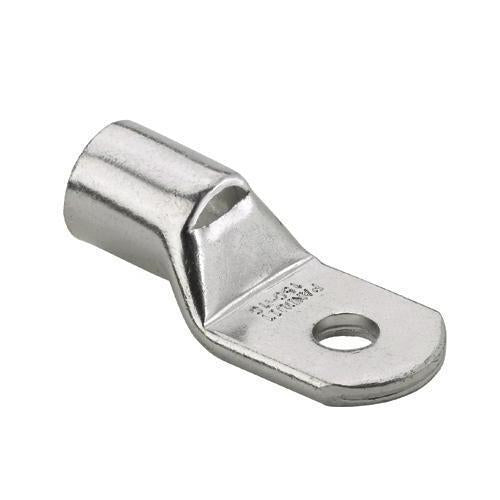

The Panduit LCMA50-12-L compression connector is a metric lug with a single hole and a standard barrel. These lugs feature a standard barrel with window lugs that provide visual assurance of full conductor insertion. Tin-plated to inhibit corrosion, the rounded tongue allows usage in tight spaces, and an internal bevel wire entry promotes fast and easy installation.

• Standard barrel with window lugs
• Visual assurance of full conductor insertion
• Rounded tongue allows usage in tight spaces

Product Highlights

The Panduit LCMA50-12-L is RoHS-compliant, UL-listed, UL-recognized, and CSA-certified for applications up to 35kv with a UL temperature rating of +90 0 0C.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCMA50-12-L

Technical Specifications

• Barrel Size: 9.8 mm ID x 20.3 mm L
• Barrel Type: Seamless/Standard
• Mounting Hole Size: 14 mm
• Overall Length: 50 mm
• Series: Pan-Lug
• Temperature Rating: 90 deg C
• Tongue Size: 23 mm W x 1.8 mm THK
• Tongue Type: Round/Straight
• Type: 1-Hole Metric
• Voltage Rating: 35 kV
• Conductor Size: 50 sq-mm
• Conductor Type: Rigid/Stranded Copper
• Die Code: P37
• Stud Size: M12
• Material: Tin Plated Copper
• Conductor Size (AWG): 50mm²
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Insulation: Non-Insulated
• Terminal Type: Flat Sided, Tubular (Battery Lugs)
• Contact Material: Copper
• Contact Finish: Tin
• Thickness: 1.80mm
• Base Product Number: LCMA
• Brand Name: Panduit
• Product Name: Terminal Connector
• Product Type: Terminal Connector
• Environmentally Friendly: Yes
